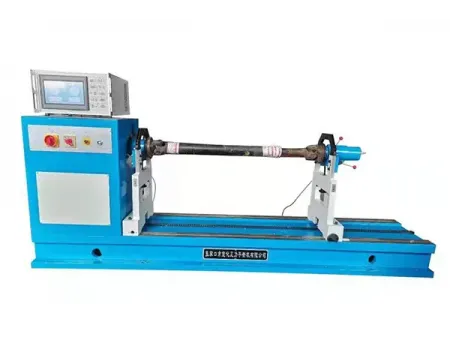

Drive Shaft Balancing Machine
Request a Quote
YRD-30
Hard-bearing balancing machine for dynamic balancing of drive shafts
The YRD-30 is a hard-bearing balancing machine designed for the dynamic balancing of small drive shafts. It is suitable for passenger cars, light-duty trucks, three-wheeled motorcycles, and agricultural vehicles. The balancing machine can also be applied to other small industrial drive shafts, ensuring stability and accuracy in rotational performance.
Specifications
| Workpiece weight | 3-30kg |
| Max. workpiece length | 1500mm |
| Unbalance reduction ratio (URR) | ≥90% |
| Max. initial unbalance of workpiece | < 300g·cm |
| Min. measurement | 2g·cm |
| Balancing speed | 1200/1600/2400/3200 r/min |
Features
- Equipped with advanced electrical measurement systems, including the ZL-220 digital display system and the ZL-210 industrial computer balancing system.
- Prior to operation, parameters such as rotor correction face dimensions and correction radius can be input directly into the measurement unit.
- Once the rotor is started, the system automatically displays the magnitude and phase of the unbalance, providing clear and precise results.
