Semi-auto Twisted Handle Making Machine XKYS-02

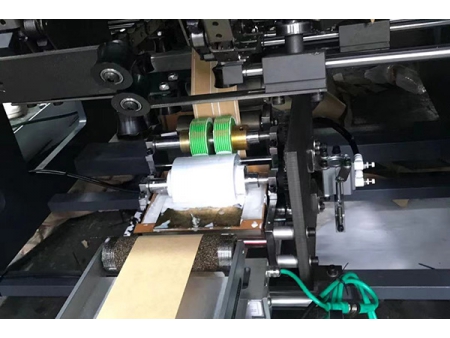

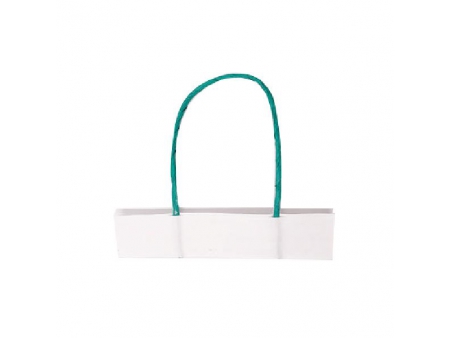

Our semi-auto twisted handle making machine is applied to produce round handles using twisted paper cords and glue. Conveyor machine is configurable as per customer's request to facilitate attaching handles on paper bags. This paper handle making machine features high-speed rotary knife to cut paper patches, enabling two pieces of twisted handle to be produced with one cut. Automatic counting and gluing functions are available to further improve the working efficiency of subsequent processing operations.
- Model: XKYS-02
- Inner diameter of patch paper roll: Ø76 mm(3'')
- Outer diameter of patch paper roll: Ø1000mm
- Production speed: 5000-8000pairs/hour
- Input voltage: 380V
- Total power: 7.8kW
- Total weight: Approx. 1500kg
- Overall dimension (L×W×H): 4000×1300×1500mm
- Patch paper length (A): 190mm (optional)
- Paper rope handle center distance (B): 95mm (optional)
- Patch paper width (C): 35/40mm
- Paper rope handle height (D): 100mm
- Paper rope diameter: 3.0-4mm
- Glue type: Hot-melt glue

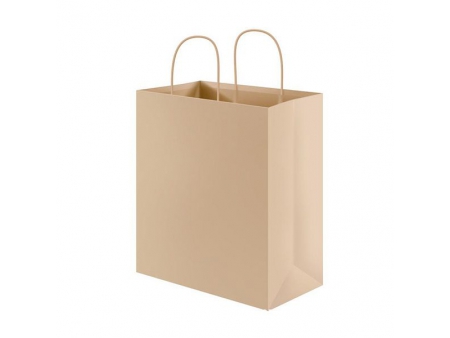

In addition to the manufacture of paper shopping bag making machines, Xinke can offer a complete solution for your production needs of branded paper bags or plain paper bags, whether it is with or without bag handles. Our paper bag making machine can be configured with flexo printing machine for in-line application to produce printed paper counter bags, die cut handle bags, tape handle bags and luxury rope handle bags for economical brand promoting.
-
-
- The twisted handle making machine is easy to operate, which can produce 130 pairs/min.
-
-
- An automatic gluing system can be optionally equipped according to the need of paper bags manufacturers. Automatic gluing instead of manual gluing greatly reduces labor costs.
-
-
- The twisted handle making machine comes with a Taiwan melter for supplying hot melt adhesives.
