Automatic Twisted Handle Making Machine XKYS-01
Request a Quote
This automatic twisted handle making machine is ideal for in-line application with paper bag making machine. This handle making machine can efficiently manufacture twisted paper bag handles by attaching twisted paper cord on patch paper roll. With functions of automatic counting and gluing, it can greatly improve the working efficiency of subsequent processing operations.
Request a quote
Paper Bag Making Process
Specifications
- Model: XKYS-01
- Patch length (A): 152/190mm
- Handle center distance (B): 75/95mm
- Patch width (C): 30/40mm
- Paper rope length: 360mm
- Paper rope height (D): 100mm
- Paper rope diameter: Ø2.5~5mm
- Bag width: 250-400mm
- Bag length: 250-450mm
- Top opening size: Over 130mm
- Production speed: 30-35 pcs/min
- Servo motor power: 750W
- Power: 380V, 10kW, 50HZ
- Overall dimension (L×W×H): 6000×1600×1500mm
Features
-
-
- FLEXEM touch screen HMI with clearly displayed function keys allows user to easily operate and see the real-time working status of the machine.
-
-

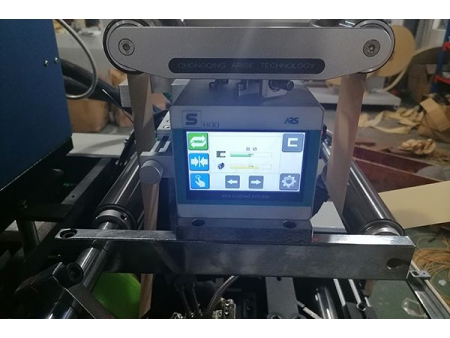

- Automatic web guiding system keeps patch paper positioned at right place.
-
-

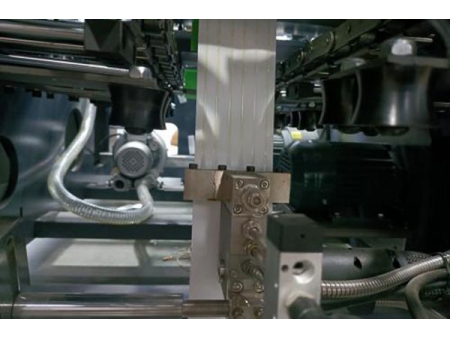

- High grade hot melt glue system helps reduce costs by eliminating error likelihood.
-
-

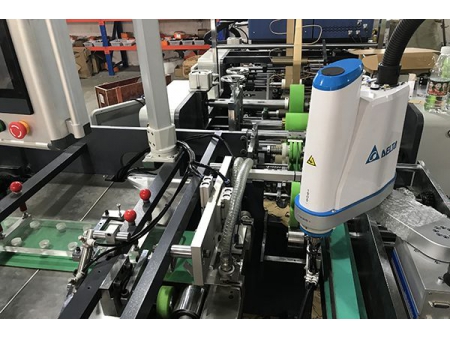

- Taiwan DELTA robot provides reliable performance and prolonged service life.
-
-

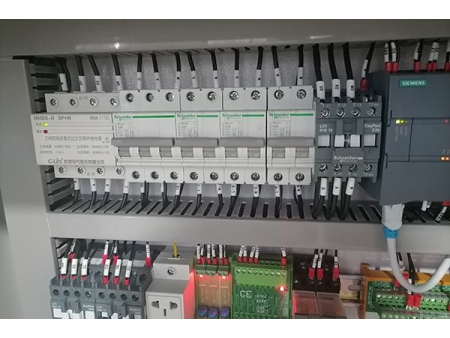

- Siemens servo motor and inverter.
-
-
- Automatic paper bags delivery
