Electric Forklift 4-5 Tonne
K Series
The lithium battery powered forklifts can lift materials up to 4 to 5 tons. Adopting the integrated design of the drive axle and the gearbox, the forklift is energy-saving due to high transmission efficiency and short braking time.
The newly upgraded hydraulic steering axle features a wide steering angle, greatly facilitating both operations and routine maintenance. The boltless uni-body structure enhances strength, allowing the forklift to handle more challenging work scenarios.
- 4000-5000 kg
- 3000 mm
- 13-14 km/h
- 2570-2800 mm
- The hydraulic steering axle provides larger steering angle and reduces the turning radius, which helps save maintenance time and costs.
- With an integrated design, the forklift is made without any bolts, which increases the total strength by 20%. This design increases operational safety and empowers the forklift to carry out complex material handling tasks in uneven and winding terrains.
- The integrated design of the drive axle and transmission ensures high efficiency and low noise levels.
- The new axle provides a wider steering angle and a reduced turning radius, saving time and costs on maintenance.
- The steering wheel is designed for easy operation, minimizing strain on the operator's arms and shoulders.
- This electric forklift offers advantages such as short braking times and low energy consumption.
Material handling in warehouses, logistics centers and distribution centers.

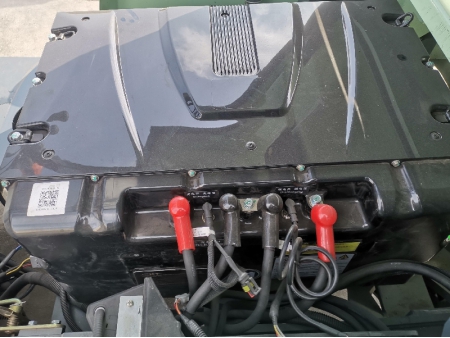

Battery Electric Motor (Optional)
The battery and electric motor are equipped with intelligent control for safe and stable operation, ensuring low noise levels while being eco-friendly and energy-efficient, with high durability for long-lasting performance.
Seat (Optional)
Featuring an OPS system with an ergonomic design and multiple adjustable settings, this seat effectively reduces operator fatigue, enhancing comfort during long shifts.
Mast (Optional)
Offers 2-3 stage standard masts and multi-stage full free lift masts, providing a high level of customization to meet various operational requirements.
Load-Backrest
Designed to prevent cargo slippage, this feature enhances safety during operations.

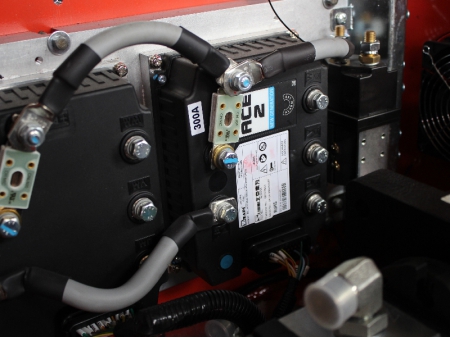

Control System (Optional)
The integrated dashboard, combined with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation for the user.
Overhead Guard
This overhead guard is designed to enhance driver safety and can be customized to meet specific operational needs with increased width and height options.
Control Valve
This control valve is designed with care to ensure straightforward operation and offers customization options to meet diverse requirements.
| Model | | | |||
| Characteristics | Power | Lithium battery | |||
| Capacity | kg | 4000 | 5000 | ||
| Load Centre | mm | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2570 | 2800 | ||
| Performance | Travel Speed | Load/no load | km/h | 13/14 | 13/14 |
| Lift Speed | Load/no load | mm/s | 290/420 | 220/230 | |
| Dimensions | Total Length | Without fork | mm | 2900 | 3139 |
| Total Width | mm | 1245 | 1480 | ||
| Max. Lifting Height | mm | 4265 | 4200 | ||
| Mast Height | mm | 2100 | 2270 | ||
| Chassis | Tyre | Front | 250-20 | 300-15 | |
| Rear | 6.50-10 | 700-12 | |||
| Wheelbase | mm | 1700 | 2000 | ||
| Service Weight | No load | kg | 4950 | 6800 | |
| Power | Battery | Electric tension | V | 76.8 | 80 |
| Capacity | Ah | 280 | 460 | ||
| Motor | Drive motor | kW | 12 | 16 | |
| Oil pump motor | kW | 21 | 23 | ||
- Lithium batteries have longer service life, which helps reduce maintenance costs.
- Using lithium batteries, the forklift enjoys the benefits of less energy loss and increased operational time.
- Lithium batteries feature flexible charging which enables the forklift to be online for 24 hours and operate before reaching full charge.
- Lithium batteries have less emissions and are environmental-friendly.
-
