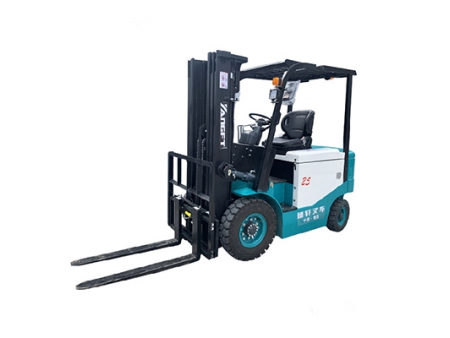

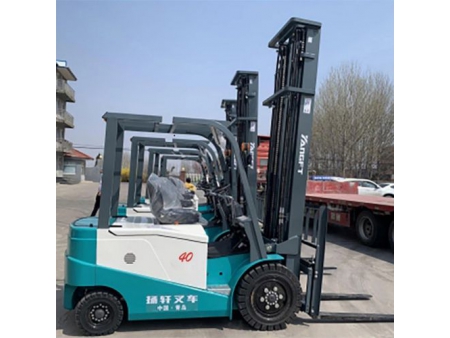

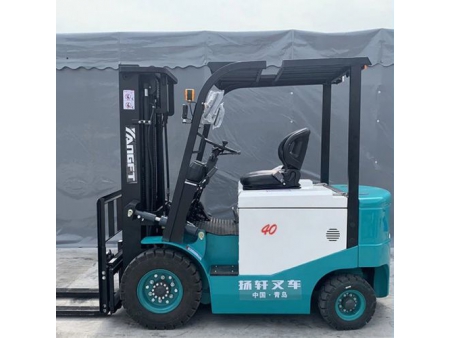

Electric Forklift 4-5 Tonne
A Series
The light-duty electric forklifts are available with optional lithium batteries and lead-acid batteries, with the capacity of 500 and 630 Ah. The strong battery configuration can provide long-lasting power for material handling tasks.
Built for ease of use, our electric forklifts operate quietly and feature a compact design with a tight turning radius for optimal maneuverability. Equipped with tailored algorithms, they deliver strong performance, especially on slopes. Maintenance is straightforward, and these forklifts have proven their reliable durability over time.
- 4000-5000 kg
- 3000 mm
- 13-17 km/h
- 2320-4080 mm
- The high-strength mast and the integrated design increase the forklift strength by 20%, which secures drivers’ safety and enables the forklift to handle uneven and winding paths and fulfil demanding material handling tasks.
- The forklift is easy and costs less to maintain.
Flexible material handling solutions for limited and indoor space, such as warehouses, logistics centers and delivery centers.
-
Unibody Frame
The boltless, unibody design enhances strength by up to 20%, improving safety and enabling the forklift to navigate uneven surfaces and curved paths while withstanding long, rigorous transport operations. The mast, crafted from German steel, provides rigidity and durability. Additionally, the anti-slip function automatically engages on slopes to ensure safety.
OPS System (Optional)
The operator presence sensing (OPS) system ensures secure operation by detecting if the operator is correctly positioned on the seat. If the operator shifts to an improper position or leaves the seat, the system immediately halts all driving power and suspends loading or unloading activities.
-
Comfortable Operating Space
The ergonomic design reduces operator fatigue during extended shifts, increases workspace, and enhances overall work efficiency. The adjustable steering wheel adds convenience, allowing customization to the operator's preferred position.
-
Intelligent Multi-Function Display
The multifunction display provides a clear overview of driving speed, battery charge, total operating hours, operator information, and all warnings in a compact and easy-to-read format.
| Model | | | |||
| Characteristics | Power | Battery | |||
| Capacity | kg | 4000 | 5000 | ||
| Load Centre | mm | 500 | 600 | ||
| Lift Height | mm | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2320 | 3240/4080 | ||
| Performance | Travel Speed | Load/no load | km/h | 13/14 | 15/17 |
| Lift Speed | Load/no load | mm/s | 280/360 | 370/420 | |
| Dimensions | Total Length | Without fork | mm | 2520 | 3510 |
| Total Width | mm | 1225 | 1970 | ||
| Max. Height | mm | 4210 | 4600 | ||
| Mast Height | mm | 2065 | 2450 | ||
| Chassis | Tyre | Front | 23x9-10 | 8.25-15NHS | |
| Rear | 18x7-8-14PR | 8.25-15NHS | |||
| Wheelbase | mm | 1700 | 2250 | ||
| Service Weight | No load | kg | 5400 | 7900 | |
| Power | Battery | Electric tension | V | 80 | 76.8 |
| Capacity | Ah | 500 | 630 | ||
| Motor | Drive motor | kW | 14 | 25 | |
| Hydraulic motor | kW | 13 | 21*2 | ||
- The electric forklift can fulfill the requirement of zero emission and it is clean and environmental-friendly to secure drivers’ health and safety.
- The forklift allows for quiet operation since it produces less noise.
- With a small turning radius, the forklift can move materials in confined space.
- Using lithium batteries, it reduces maintenance expenses and increases efficiency.
- Lithium batteries enable flexible charging, which means the forklift can work for 24 hours (the forklift can operate before reaching full charge).
-
