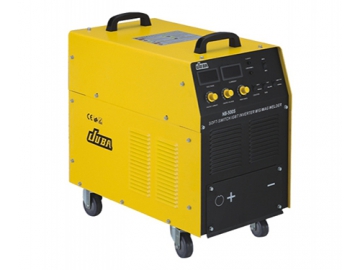

MIG-S SERIES MIG Welder, Metal Inert Gas Welding
Features
- The MIG-S series MIG welder features more than one MMA function.
- It is a single-phase, portable, fan-cooling and wire welding machine for flux (no gas) and MIG/MAG (gas) welding.
- Along with a thermal protection performance, it comes with a complete line of MIG welding accessories.
- This MIG welder is suitable for welding different material types such as steel or stainless steel.
- Steel and aluminum cutting abilities are available upon request.
Parameters
| Model | MIG-160S | MIG-180S | MIG-200B |
| Power Voltage(v) | 230 | 230 | 230 |
| Input Voltage Frequency(hz) | 50/60 | 50/60 | 50/60 |
| Output Current Range(a) | 40-160 | 40-180 | 40-200 |
| No-load voltage (v) | 55 | 55 | 55 |
| Duty Cycle(%) | 35 | 35 | 35 |
| Insulation Class | F | F | F |
| Efficiency(%) | 85 | 85 | 85 |
| Weight(kg) | 17 | 17 | 18 |
| Measurement(mm) | 540*335*440 | 540*335*440 | 560*365*480 |
| Protection Class | IP21s | IP21s | IP21s |
| Welding wire dia(mm) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
| Usable Electrode(mm) | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 |
| Cod.(no) | 870004 | 870005 | 870006 |
