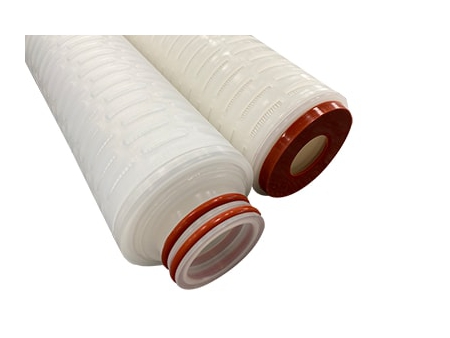

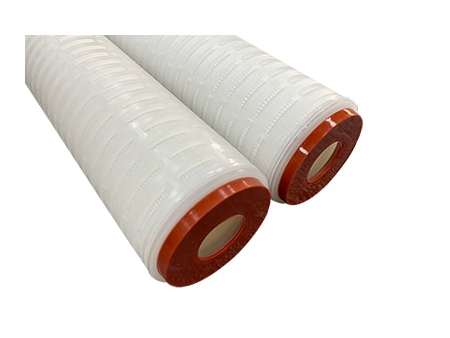

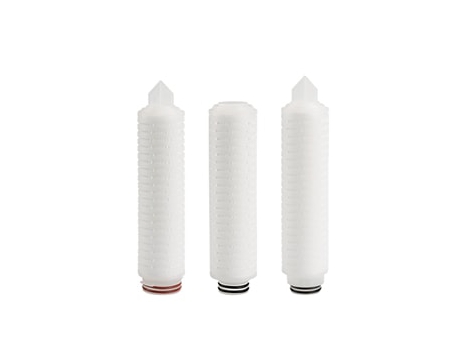

Glass Fiber Membrane Filter Cartridge for Liquid Pre-filtration, PLGF Series
Request a Quote
Our glass fiber membrane filter cartridges are engineered from ultra-fine glass fiber material for liquid prefiltration. These membrane filter cartridges feature high dirt holding capacities and adsorption capabilities, making them an ideal choice for filtering liquids containing colloids, oils, and particulate matter. With superior particle interception efficiency over 98%, low initial pressure-drop, and a prolonged lifespan, these cartridges redefine prefiltration standards.
Materials of Construction
| Filter Medium | Ultra-fine glass fiber |
| Support/Drainage | Polypropylene |
| Center Rod/Housing/End Cap | Polypropylene |
Specifications
| Length | 5", 10", 20", 30", 40" |
| Micron Rating | 0.22μm~5.0μm |
| Max. Operating Temperature | 80℃ |
| Max. Differential Pressure | 4.0 bar / 21℃ 2.1bar / 80℃ |
| Filtration Area | 0.24~0.34 m2/10" |
| Biological Safety | Dissolved matter＜30mg per 10" Endotoxin level＜0.25EU/ml |
Applications
- Clarification and filtration for viscous or colloidal liquids
- Prefiltration of serum and blood products
- Prefiltration of cell culture media
