The two-zone thermal shock test chamber is a functional machine for reliability tests of various electronic products, components and materials. It provides high temperature, low temperature, and other types of temperature shocks to test the stability and durability of products.
Technical Parameters of Two-Zone Thermal Shock Test Chamber
Model
Temperature range
Dimensions (W×H×D )mm
TST-11-A
High temperature, 60 to 200℃
320×148×230
Low temperature, -40 to 0℃
TST-11-B
High temperature, 60 to 200℃
320×148×230
Low temperature, -55 to 0℃
TST-11-D
High temperature, 60 to 200℃
320×148×230
Low temperature, -65 to 0℃
TST-45-A
High temperature, 60 to 200℃
350×300×308
Low temperature, -40 to 0℃
TST-45-B
High temperature, 60 to 200℃
350×300×308
Low temperature, -55 to 0℃
TST-45-D
High temperature, 60 to 200℃
350×300×308
Low temperature, -65 to 0℃
TST-132-A
High temperature, 60 to 200℃
510×510×510
Low temperature, -40 to 0℃
ST-132-B
High temperature, 60 to 200℃
510×510×510
Low temperature, -55 to 0℃
ST-132-D
High temperature, 60 to 200℃
510×510×510
Low temperature, -65 to 0℃
Standards
GB/T2423.1-2008
Environmental Testing - Part 2: Test Methods - Tests A: Cold
GB/T2423.2-2008
Environmental Testing - Part 2: Test Methods - Tests B: Dry heat
GB/T2423.22-2002
Environmental testing for Electric and Electronic Products--Part 2: Test Methods--Test N: Change of Temperature
GJB150.3-1986
Environmental Test Methods for Military Equipment--High Temperature Test
GJB150.4-1986
Environmental Test Methods for Military Equipment--Low Temperature Test
GJB150.5-1986
Environmental Test Methods for Military Equipment--Temperature Shock Test
The detection system and detection method has obtained a patent for invention. According to the specific needs for testing, users can control the heating power to realize rapid warming. The temperature difference can also be accurately controlled. TST thermal shock test chamber has the advantages of fast heating rate, small temperature difference and high detection precision.

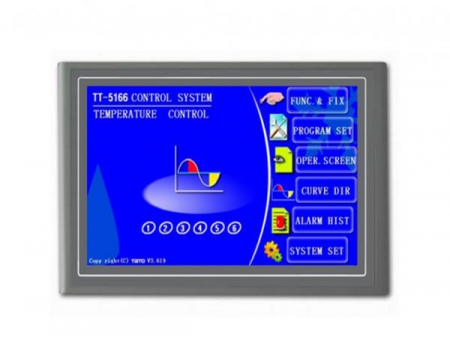

Simplewell controller

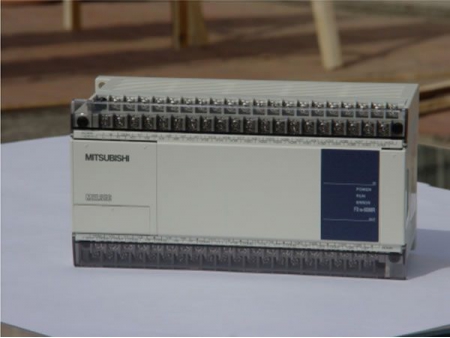

Mitsubishi PLC
Temperature and humidity adjustment range
Optional Configurations

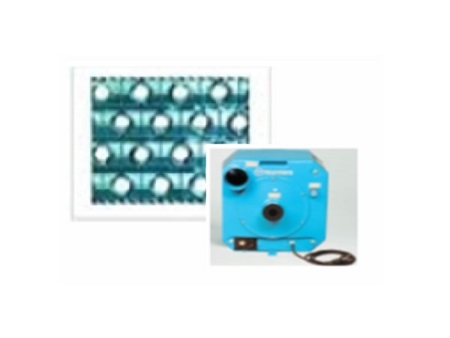

1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.

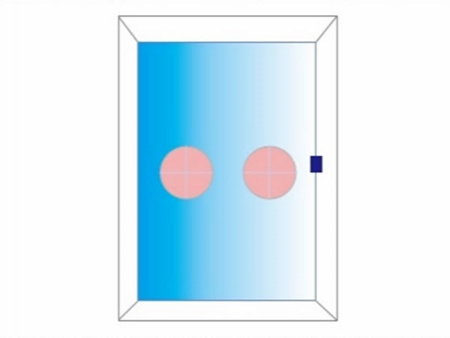

2. Built-in tempered glass door, easy to move

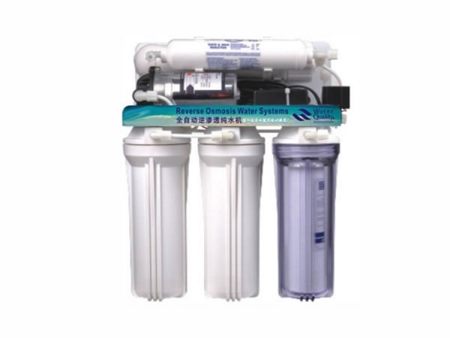

3. Water purification system, with automatic replenishment function

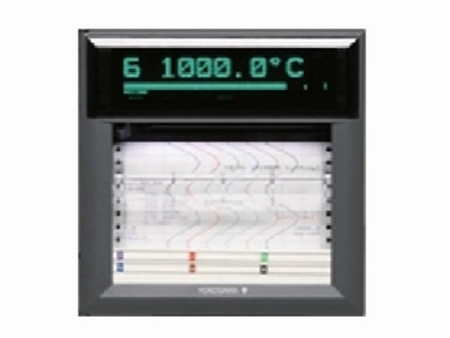

4. Recorder, save and print testing data

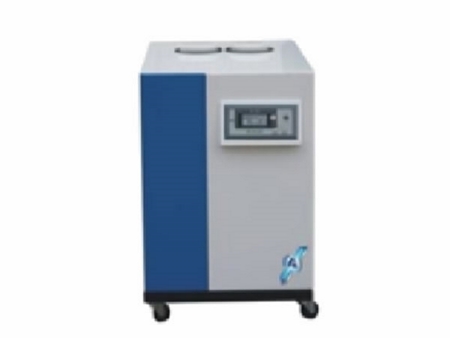

5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature

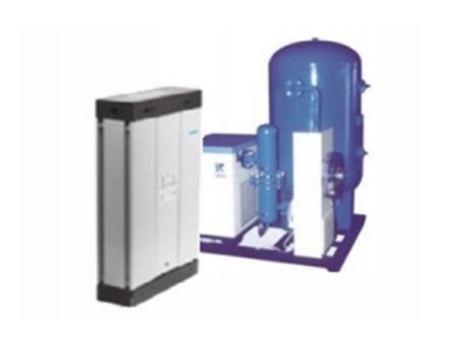

6. Dry air blow system, anti-condensation
7. Remote monitoring function, cellphone and computer supportive
