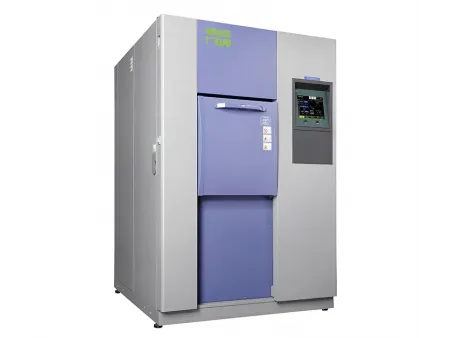

TSG Series Three-Zone Thermal Shock Test Chamber

Request a Quote

Website: http://testchamber-en.com/5-2-three-zone-thermal-shock-test-chamber.html

Environmental chamber with hot, ambient and cold zones for product reliability testing by rapidly transferring extreme temperature changes

A three-zone thermal shock chamber uses separate hot, ambient, and cold sections to expose products to extreme temperature changes in seconds. Unlike designs where samples move between chambers, this thermal shock test system keeps the product fixed in place while air flows switch automatically, reducing vibration and ensuring more accurate measurements. The chamber can operate in both two-zone and three-zone modes, depending on the test requirements.

Common Test Applications

High-temperature testing
Low-temperature testing
Controlled temperature cycling
Thermal shock testing

Standard Configuration

1 oval cable port measuring 25×100 mm, with grey soft rubber plug and cover
Hour meter

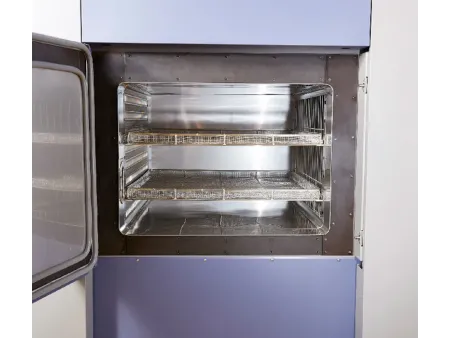

2 sets of specimen baskets
6 caster wheels
4 leveling feet
1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port
USB port

Features

The chamber uses a three-zone fixed design with pneumatic dampers that automatically switch airflow. This setup supports both two-zone and three-zone testing modes, depending on the required protocol.
Samples remain in a single position throughout the test cycle. By avoiding movement, the thermal shock test system reduces vibration and interference, resulting in more consistent and reliable data.
A large front door with pneumatic opening and closing makes it safer and easier to load or remove test items.

Technical Parameters

Model				55 Type				55s Type		H Type	S Type			L Type
Model				TSG2055W	TSG3055W	TSG5055W	TSG10055W	TSG3055WS	TSG5055WS	TSG-71H-W	TSG-71S-A/W	TSG-101S-W	TSG-201S-W	TSG-71L-A	TSG-101L-A
Chamber volume (L)				200	300	500	970	300	500	70	70	100	200	70	100
Test system				2-zone or 3-zone,pneumatic damper switching
Performance	High temperature zone	Pre-heat upper limit		200℃
	High temperature zone	Temperature rise rate		60℃→ 200℃≤20min						Ambient temperature→ 200℃≤15min
	Low temperature zone	Pre-cool lower limit		-78℃						﹣77℃	﹣75℃
	Test area	Temperature deviation		±2℃						±2℃ (≤ 150℃) ±3℃ (＞ 150℃)
		Temperature exposure range		High temperature:( 60~ 150)℃ Low temperature:(-55~-10)℃						High temperature:( 60~ 200)℃ Low temperature:(-70~0)℃				High temperature:( 60~ 200)℃ Low temperature:(-65~-0)℃
		Temperature recovery time		≤5min				≤5min		≤5min	≤5min		≤10min	≤5min
		Specimen weight*		10kg	7.5kg	12.5kg	12.5kg	7.5kg	10kg	3.5kg	5kg	5kg	20kg	2.5kg	2.5kg
Internal dimensions (mm)			W	650	970	970	970	970	970	410	410	650	650	410	650
			H	460	460	780	1000	460	780	460	460	460	460	460	460
			D	670	670	670	1000	670	670	370	370	370	670	370	370
External dimensions (without protrusion) (mm)			W	1710	2030	2030	2030	2030	2030	1310	1310	1550	1550	1310	1550
			H	1935	1935	2256	2475	1935	2256	1950	1950	1950	1950	1950	1950
			D	1845	1845	1845	2090	1845	1845	1830	1530	1530	1830	1530	1530
Rated power (kW)				39	39	50	55	50	55	43	35	35	49	26	26

Performance data for air-cooled models are based on an ambient temperature of 25 °C and relative humidity up to 85%, measured with the chamber empty. For water-cooled models, performance is specified with ambient temperature between 15 °C and 35 °C, relative humidity ≤85%, and cooling water temperature ≤ 28 °C, also measured without any samples inside.

Test samples are plastic-encapsulated ICs evenly distributed in two sample baskets. For details about temperature recovery conditions, please contact your sales representative.
