Automatic Flatbed Die Cutter, MWZ 1670Q
Request a Quote
Technical Parameters
| Machine model | MWZ 1670Q | |
| Max. sheet size | 1670 x 1260mm | |
| Min. sheet size | 650 x 500mm | |
| Max. cutting size | 1640 x1230mm | |
| Max. cutting force | 400 tons | |
| Max. mechanical speed | 5000 sheets per hour | |
| Stock range | Corrugated sheet 0.8-8.5mm | |
| Height of cutting rule | 23.8mm | |
| Pressure adjustment | ±1.5mm | |
| Cutting precision | ±0.5mm | |
| Min. front waste | 10mm | |
| Chase size | 1680X1260mm | |
| Machine dimensions | Length | 10400mm |
| Width | 5400mm | |
| Height | 2900mm | |
| Machine weight | 36T | |
Machine Details
- Gear Driven Lead Edge Feeder
- High speed lead edge feeder paired with robust feeding table makes the flatbed die cutting machine suitable for cutting both corrugated boards and laminated sheets.
- Height-adjustable back stopper is suitable for warped sheets feeding.
- Adjustable vacuum suction power allows large sheet feeding.

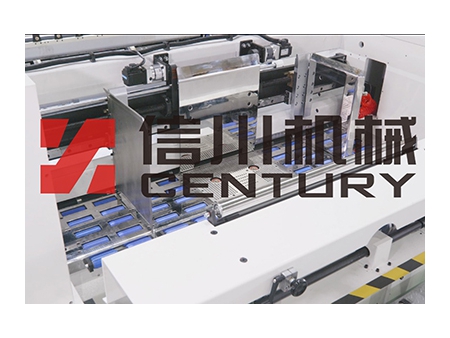

- Servo Driven Feeding Table
- Left and right side push lays ensure accurate alignment and power registration.
- Brush rollers and pressure rollers are used to ensure accurate feeding of sheets to die cutting unit.
- Die Cutting Section
- Automatic self-lubrication system ensures smooth running of the die cutting machine.
- Central positioning system allows fast job changeover and easy machine set-up.
- Gear drive system is used as main drive to provide high speed operation.
- Stripping Section
- Central positioning system simplifies stripping die set-up and allows fast job changeover.
- Heavy duty double action stripper efficiently removes waste, ensuring positive stripping.
- The waste separator at front removes trim waste from the sheet and transfers it to the machine drive side by conveyor belt.
- Delivery Section
- Non-stop pallet delivery system ensures continuous production.
- Front, back and side joggers are available for neat stacking.
