MWZ 1300Q automatic flatbed die cutter is a high speed die cutting machine specifically designed for corrugated board cutting. It can achieve maximum cutting size of 1300 x 960mm, with a cutting speed of up to 6000 sheets every hour.

Technical Parameters
Machine model MWZ 1300Q
Max. sheet size 1330 x 980mm
Min. sheet size 550 x 480mm
Max. cutting size 1300 x 960mm
Cutting force Up to 300tons
Max. mechanical speed 6000 sheets per hour
Stock range Corrugated sheet 0.8-8.5 mm
Height of cutting rule 23.8mm
Pressure adjustment ±1.5mm
Cutting precision ±0.5mm
Min. front waste 10mm
Machine weight 23 Tons
Machine Details
  • Gear Driven Lead Edge Feeder
    • High speed lead edge feeder paired with robust feeding table enables the flatbed die cutting machine suitable for cutting both corrugated boards and laminated paperboards.
    • Height-adjustable back stopper is suited to handle warped sheets.
    • Vacuum suction with adjustable power allows large sheet feeding with ease.
  • Servo Driven Feeding Table
    • Left and right side push lays ensure accurate alignment and power registration.
    • Brush rollers and pressure rollers make sure that the sheets are accurately transferred to die cutting unit.
  • Die Cutting Section
    • Independent automatic self-lubrication system ensures smooth running with less maintenance.
    • Central positioning system allows fast job changeover and easy machine set-up.
    • Gear drive system is used as main drive to provide high speed operation.

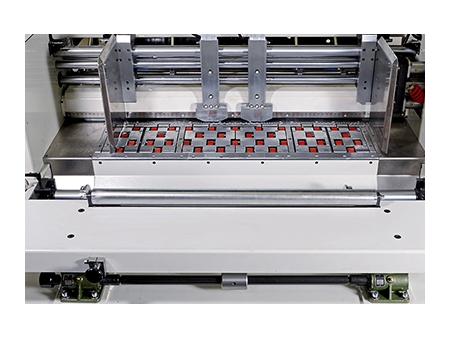

  • Stripping Section
    • Central positioning system simplifies stripping die set-up and allows fast job changeover.
    • Heavy duty double action stripper efficiently removes waste, ensuring positive stripping.
    • Front waste separator removes trim waste from the sheet and transfers it to the machine drive side by conveyor belt.

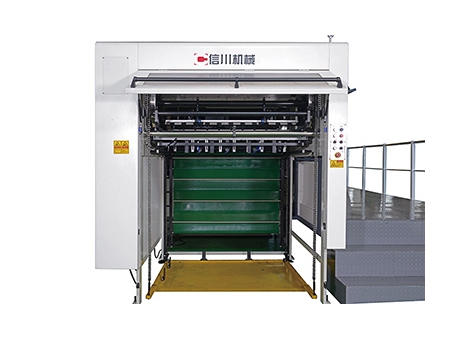

  • Delivery Section
    • Non-stop pallet delivery system achieves continuous production.
    • Front, back and side joggers are available for neat stacking.

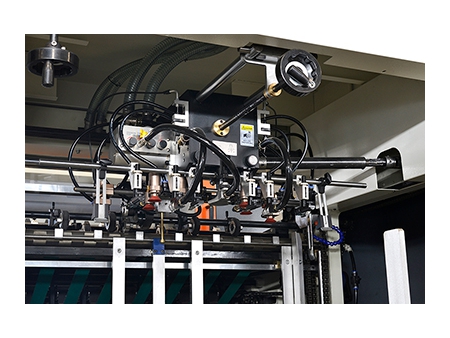

  • Top air suction feeding system
  • Lead edge feeder

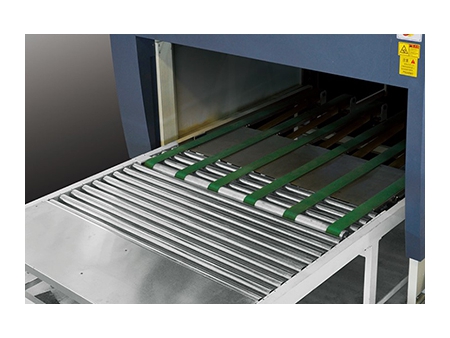

  • Automatic batch delivery system
  • Pallet delivery system
Applications

MWZ 1300Q automatic flatbed die cutter is typically used for cutting cardboards and corrugated boards for the packaging industry.
