Technical Parameters
Model MWZ 1850N
Max. sheet size 1880 x 1420mm
Min. sheet size 650 x 550mm
Max. cutting size 1850 x 1400mm
Cutting force Up to 350 tons
Max. speed 3,500sph
Stock range Corrugated sheet1-9mm
Pressure adjustment ±1mm
Cutting precision ±0.5mm
Min. front waste 10mm
Chase size 1890 x 1430mm
Power consumption (without air pump) 37 kW // 380V, 3-PH, 50/60Hz
Machine dimensions Length 11000mm
Width 5530mm
Height 2600mm
Machine weight 34 Tons
Machine Details
  • Standard Lead Edge Feeder
    • Lead edge feeder provides fast and precise sheet feeding.

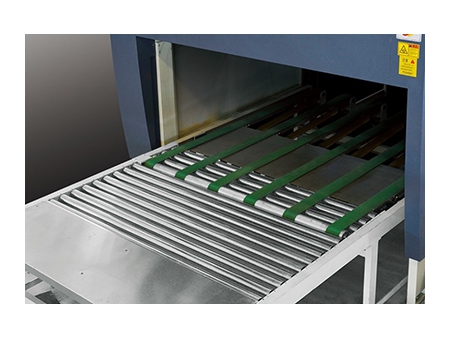

  • Feeding Table
    • Left and right side push lays ensure accurate alignment and power registration.
    • Servo motor is adopted to control conveyor belt, ensuring that the sheets are accurately fed to the die cutter.

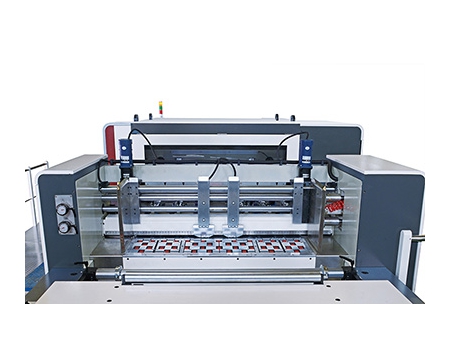

  • Die Cutting Section
    • Central positioning system is provided to ensure fast job changeover and easy machine set-up.
    • Independent automatic self-lubrication system ensures smooth running while reducing maintenance job.
    • Combination of advanced cam indexer and torsion clutch helps protect the die cutting machine from overload.
  • Stripping Section
    • Central positioning system simplifies stripping die set-up and allows fast job changeover.
    • Heavy duty double action stripping system ensures positive stripping, male and female stripping tools are offered to accommodate various stripping tasks.
    • Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.

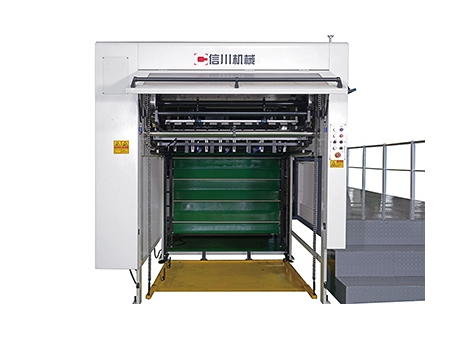

  • Delivery Section
    • Automatic pallet delivery system provides non-stop feeding, with machine height increased by 300mm.
Applications

Our MWZ 1850Nii automatic flatbed die cutter is well suited for manufactures of packaging boxes and carton boxes to cut cardboards and corrugated boards.
