Grinding Wheel for Piston and Cylinder
Request a Quote
Piston and cylinder grinding wheels are primarily used for inner diameter grinding, plane surface grinding and grooving for AC compressor pistons and cylinders. This series of grinding wheels features a 50% to 100% efficiency improvement compared to traditional grinding wheels and a much better surface finishing.
Technical Parameters:| NAME/CODE | DIAMETER (D) | OVERALL THICKNESS (T) | METAL THICKNESS (E) | EFFECTIVE GRINDING WIDTH (K) | EFFECTIVE GRINDING THICKNESS (X) |

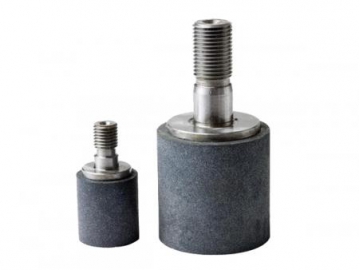

| CBN/Internal Grinding Wheel /1A8 | 8.5 | 10 | 10 | 2 | 3,5,10 |
| 10.5 | 10 | 2 | |||
| 13.5 | 12 | 3 | |||
| 17 | 15,20 | 12 | 3-5 | ||
| 23 | 15,20 | 3-5 | |||
| 45 | 15,20 | 3-5 | |||

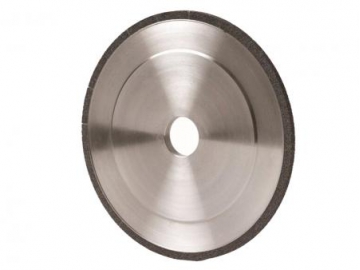

| Parallel strengthen wheel/14A1 | 80 | 20 | 10 | 4,5 | 1.5,3 |
| 100 | |||||
| 125 | 25 | ||||
| 150 |
Remark: Other specs are available upon request.
