Request a Quote

Automatic label rewinder

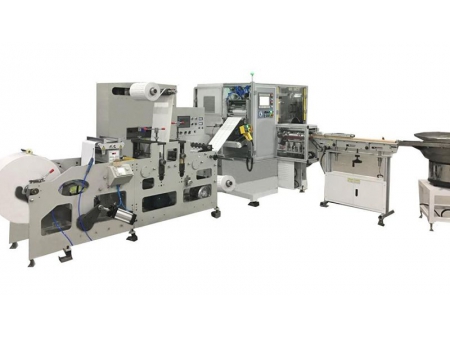

The non-stop 4 spindle turret rewinder, capable of being connected with rotary die-cutting machines, slitting machines and printing presses, can achieve seamless inline rewinding. Featuring a full servo tension controller, the turret rewinder ensures consistent tension throughout, enabling efficient and intelligent label production.

Applications

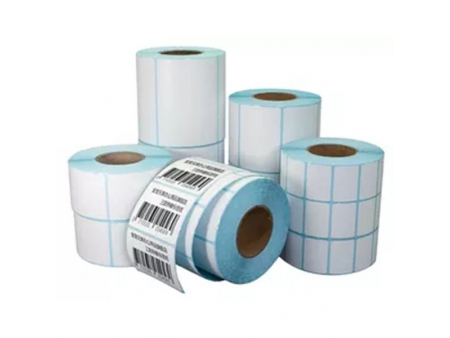

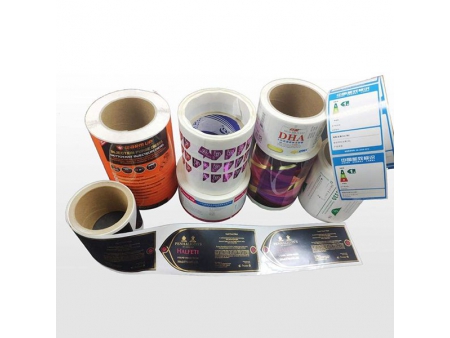

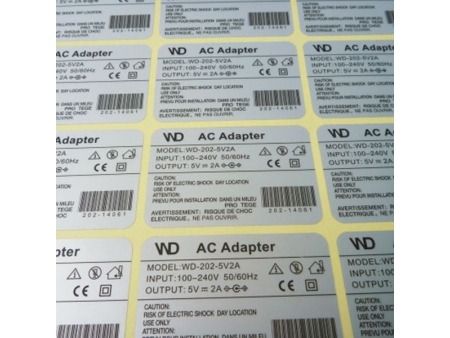

RFID tags, food labels, beverage labels, electric equipment labels, supporting equipment for high-speed printers.

Applicable Materials

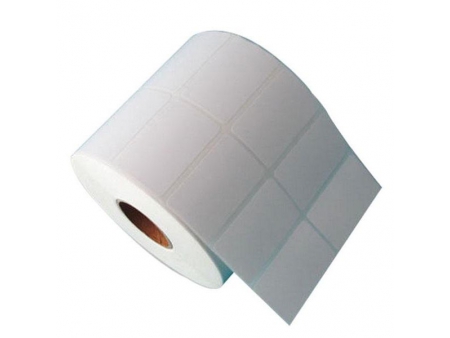

Thermal paper, self-adhesive labels, non-woven fabrics, plastic films, etc.

Features
  • The non-stop 4 spindle turret rewinder achieves a high paper loading rate of up to 100%. The turret rewinder ensures stable tension throughout the production process, maintaining optimal performance even during jog, acceleration, deceleration, and emergencies.
  • The components of our rewinding system are supplied by Bosch Rexroth. With a full servo closed-loop tension controller, a vibration plate and conveyor belt, the non-stop 4 spindle turret rewinder enables continuous online rewinding without stopping.
  • The 1-inch, 1.5-inch, and 3-inch quick-change air-expanding shafts eliminate the need for manual adjustment when the when changing shafts on the rewinder. The system automatically adjusts the shaft size, enabling smart production.
Specifications
Model DBDG-4A-330
Maximum Unwinding Diameter 600mm
Maximum Rewinding Diameter 350mm
Maximum Roll Width 3350mm
Maximum Slitting Width 320mm
Minimum Slitting Width 40mm
Minimum Rewinding Width 40mm
Total Power 10kw
Maximum Rewinding Speed 90m/min (reel diameter: 25mm /1”) 120m/min (reel diameter: 50~76mm/1.5”~3”)
Power Supply 3PH N PE
Dimensions (L*W*H) 1.7X3X1.8m
Weight 2t
Air Pressure 0.8mpa
Details
  • Unwinding Unit

    This turret rewinder is typically used in conjunction with rotary die-cutting and slitting machines, synchronized by the Japan-made Megawa inline encoder.
    Standard: in conjuction with other rotary die-cutting and slitting machines.
    Optional: Independent unwinding unit with guide rails and slitting station.

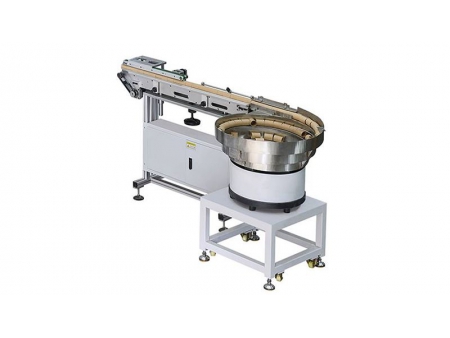

  • Automatic Paper Core Loading System

    The automatic paper core loading system includes a bowl-type feeder and a conveyor belt. The Loading system ensures continuous paper core transportation, enabling efficient and highly precise operations.

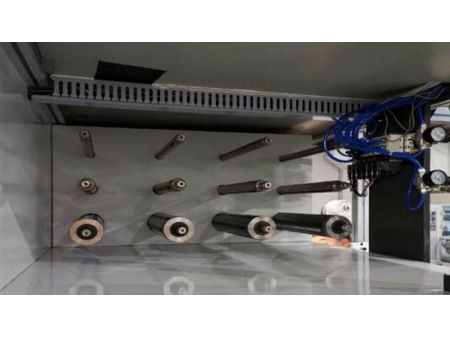

  • Quick-change Shaft

    The turret rewinder is equipped with 12 quick-change shafts, 4 for each size of 1-inch, 1.5-inch and 3-inch.

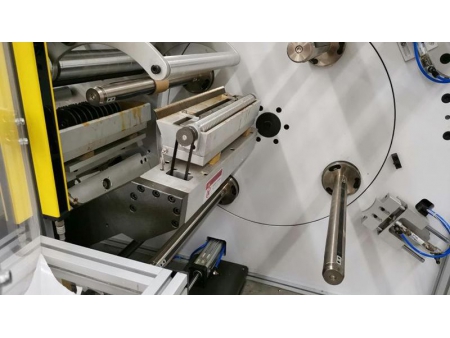

  • Automatic Gluing System

    The turret rewinder is equipped with two gluing systems, one for paper core and the other for labels.

  • Touch Screen

    Simple and user-friendly interface. Operatable without specialized training.

Optional
  • Die-cutting module
  • One extra set of slitters
  • Laminating system
  • Air-expanding shaft: 1-inch, 1.5-inch, 3-inch
