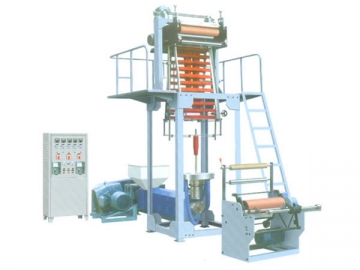

SJ PE Film Blowing Machine
Request a Quote
View All: http://printingmachinecn.com

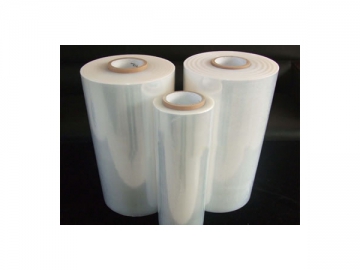

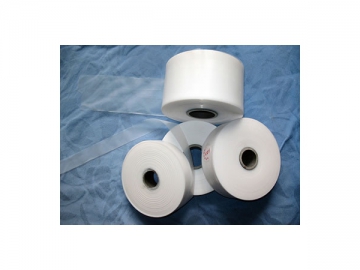

The PE film blowing machine is suitable for producing film with LDPE, HDPE, and LLDPE. Our blown film extruder is applicable for manufacturing packing material for industrial product, textile, garment, food, and agricultural product. Thanks to the stable performance of the extrusion blow molding machine, this blown film machine is well received home and abroad.
Technical Parameters of PE Film Blowing Machine| Model | SJ-45A/600 | SJ-55A/800 | SJ-60A/1000 | SJ-65A/1200 | SJ-80A/1500 | SJ-100A/2000 |
| Screw Diameter | 45mm | 55mm | 60mm | 65mm | 80mm | 100mm |
| Screw Length/Diameter Ratio | L/D28:1 | L/D28:1 | L/D28:1 | L/D28:1 | L/D28:1 | L/D28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Engine Power | 7.5kW | 11kW | 15kW | 18.5kW | 30kW | 55kW |
| Max. Extrusion Capacity | 35kg/h | 50kg/h | 65kg/h | 76kg/h | 86kg/h | 160kg/h |
| Max. Film Layflat Width | 600mm | 800mm | 1000mm | 1200mm | 1500mm | 2000mm |
| Film Thickness | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 18kW | 22kW | 28kW | 32kW | 52kW | 80kW |
| Machine Weight | 2000kg | 2200kg | 2800kg | 3300kg | 4300kg | 5800kg |
| Overall Dimensions (mm) | 4200×1800× 3600 | 4400×2000× 4000 | 4600×2300× 4200 | 4800×2500× 4500 | 5200×2800× 5000 | 5800×3300× 6000 |
