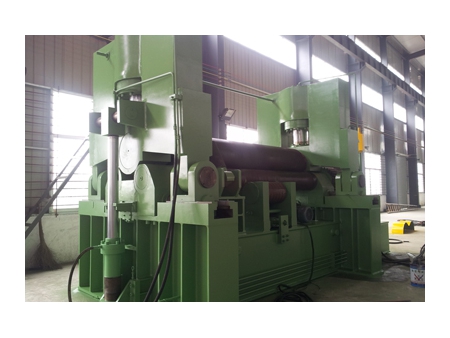

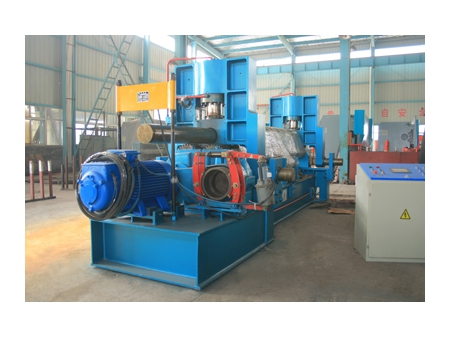

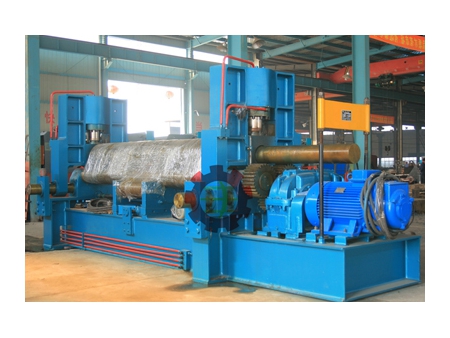

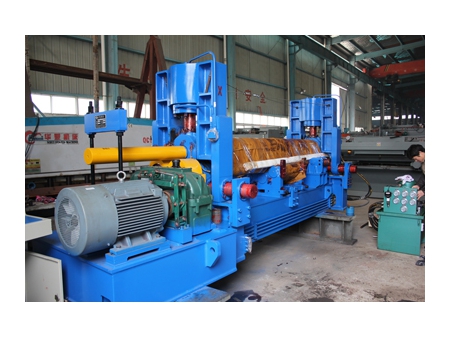

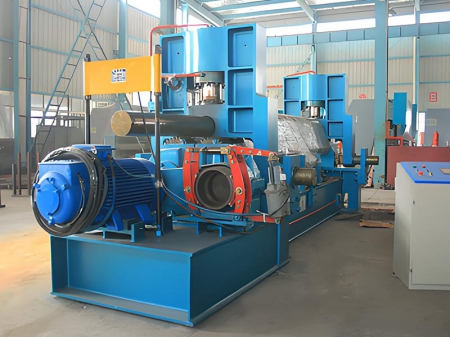

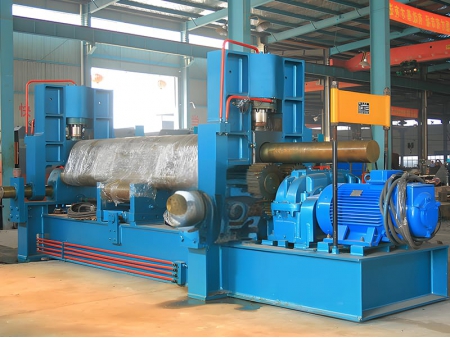

W11s Universal Plate Roll Bending Machine

W11s Universal Plate Roll Bending Machine
W11s Universal Plate Roll Bending Machine
W11s Universal Plate Roll Bending Machine
W11s Universal Plate Roll Bending Machine
W11s Universal Plate Roll Bending Machine
Request a Quote

The W11S upper roller universal plate bending machine uses hydraulic transmission operation, ensures the stability is higher than other roller machines.

  • W11S-8×2000
  • W11S-20×2500
  • W11S-30×3200
  • W11S-80×2500
Features
  • The roller machine can pre-bend the top of the plate, ensuring the bending quality.
  • The roller plate bending machine uses a numerical control system.
  • The design of the machine makes it easy for clients to move it into the best space within their factory space.
  • According to client needs, our roller machine is equipped with different curved blade types.
Parameters
Model W11S-8×2000 W11S-20×2500 W11S-30×3200 W11S-80×2500
Max. thickness of plate mm 8 20 30 80
Thickness of pre-bending mm 6 16 25 70
Max. width of plate mm 2500 2500 3200 2500
Dia. of upper roller mm 245 330 450 710
Dia. of lower roller mm Ф145 Ф180 Ф250 Ф420
Center distance of lower roller mm 200 300 420 780
Main motor power kW 7.5 15 30 75
Hydraulic motor power kW 4 7.5 15 37
