Request a Quote

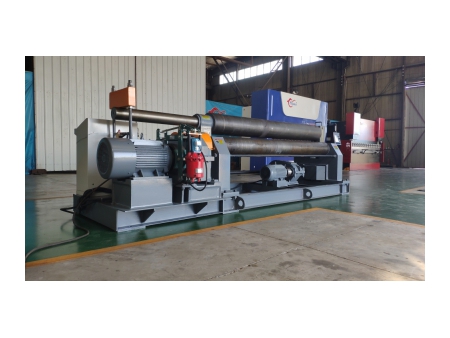

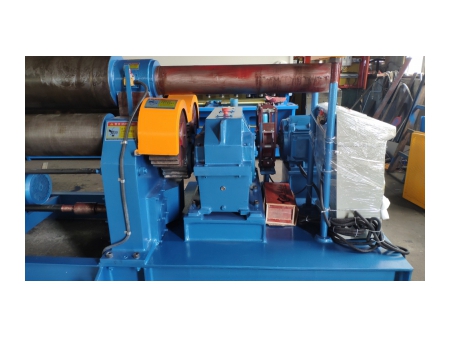

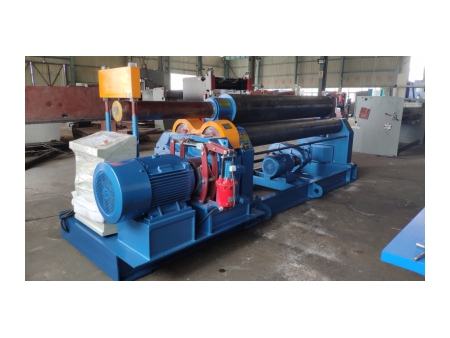

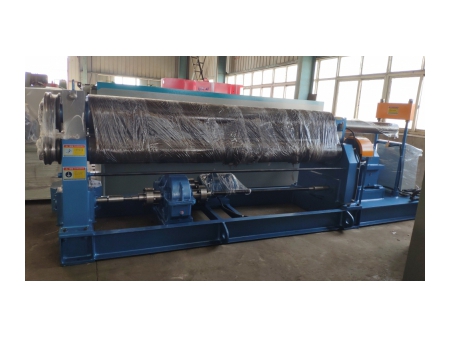

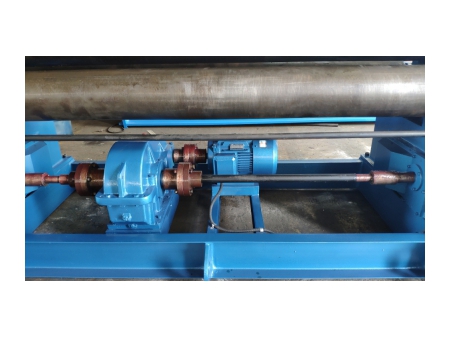

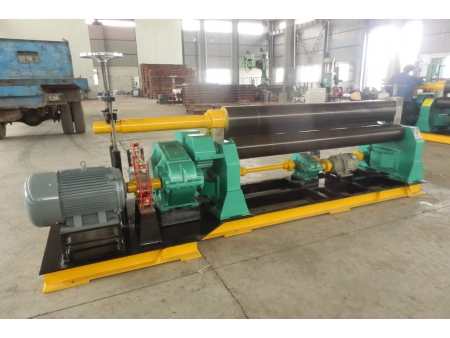

The W11 hydraulic 3 roll bending machine uses mechanical lifting and mechanical transmission. It is no need for operator to take out the metal plate manually. This equipment can be customized according to client requirements.

  • W11-6×2000
  • W11-12×2500
  • W11-16×3200
  • W11-40×2000
Features
  • Three-roll plate rolling machine uses hydraulic overturn method to discharge metal plate with specification of 25×2500mm and above.
  • Special side wheels are available for making rolled angle iron, rolled round tube and other steel profiles according to customer requirements.
  • Special specifications can be customized: a workpiece length between 1000-4000mm is optional.
Parameters
Model W11-6×2000 W11-12×2500 W11-16×3200 W11-40×2000
Max. Thickness of plate mm 6 12 16 40
Max. width of plate mm 2000 2500 3200 2000
Plate yield limit MPa 265 265 265 265
Rolling speed Min-1 7.16 5 5 5
Min dia. Of plate in full load mm 380 750 900 1200
Dia. Of upper roller mm 180 260 340 480
Dia. of lower roller mm 160 220 280 400
Space between of two lower roller mm 220 330 440 600
Main motor kW 5.5 11 22 45
Dimension(L×W×H) mm 3810×1210×1330 5000×1500×1300 6300×1600×1900 6400×2300×2800
