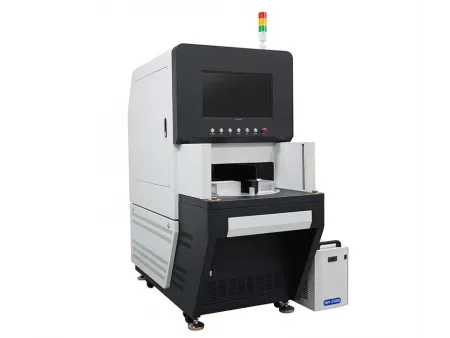

Fiber Laser Cutting Machine for Glass
- Laser power 200W
- Pulse width 6ns-100ns
- Cooling method air cooling
- Machine weight 300kg
This fiber laser cutting machine for glass features a fully enclosed safety design and an acrylic protective observation window, ensuring safe and pollution-free operation. You can monitor the cutting process in real time, with dust and splash protection that keeps your working environment clean. It comes with a renowned JPT fiber laser source, boasting a lifespan of over 100,000 hours and supporting stable 24/7 operation. With a photoelectric conversion efficiency of 30%, its energy consumption is only 20% of traditional equipment, and there's zero gas consumption.
Sodium-calcium glass, K9 glass, borosilicate glass, ultra-clear glass, quartz glass

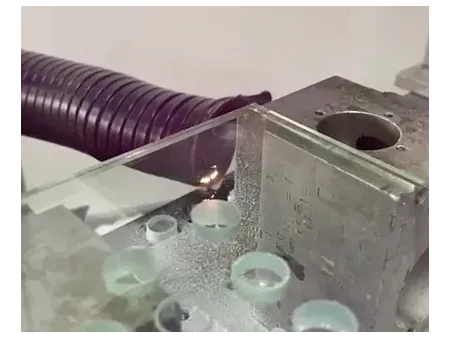

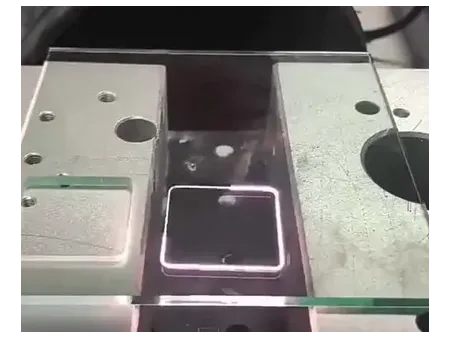

- Glass laser cutting 1
- Glass laser cutting 2
- Glass laser cutting 3
- Glass laser cutting 4
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser type fiber laser
- Laser power 200W
- Working area 80×80mm (customizable)
- Pulse energy 0.58mJ@12ns
- Pulse width 6ns-100ns
- M² value 1.4
- Cooling method water cooling
- Machine dimensions 750×1500×1950mm (chiller 290×590×470mm)
- Package size 1370×810×1760mm
- Machine weight 263kg
- Package weight 283kg
Fiber laser
Equipped with the industry-renowned JPT-M8 laser, it features ultra-high peak power and independently adjustable pulse width and frequency. Edge chipping is controlled to ≤100μm, making it especially suited for high-precision cutting of ultra-thin glass and brittle materials.
2.5D galvo system
This system uses a galvo motor in conjunction with a dynamic focusing lens, achieving an accuracy of ±0.02mm and scanning speeds up to 9000mm/s. Paired with an F100 field lens, it ensures spot uniformity, reduces the heat-affected zone, and prevents micro-cracks in glass.
F100 quartz field lens
Made from high-purity quartz material, it can withstand temperatures up to 1200℃, avoiding thermal deformation common in traditional lenses and ensuring stable operation for high-power lasers over long periods. It optimizes the spot diameter to 20μm, improving the smoothness of cutting edges and reducing the need for secondary polishing.
Multi-station Worktable
- Fully enclosed laser control cabinet
- Laser source
- Galvo scanner
- Field lens
- Control card

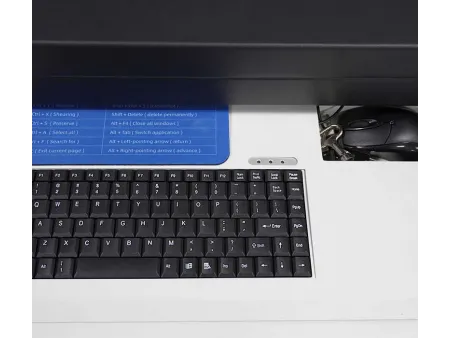

- Industrial PC
- Laser power supply
- Safety goggles
- Aluminum plate
- Equipment warranty book
- Shipping list
- Product catalog
