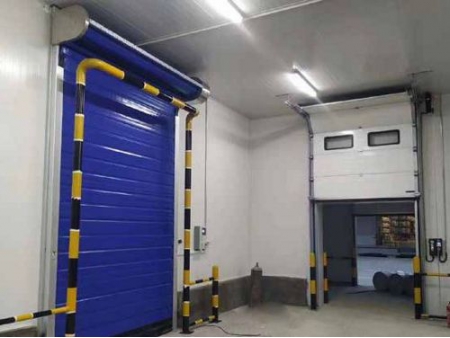

High-Speed Roll-Up Door
Designed to maximize insulation and energy efficiency, our roller shutters are engineered to withstand extreme cold while maintaining the ideal environment inside. Our doors can save you up to 30% in energy costs, making them a smart investment for a range of industries including food and beverage manufacturing, agriculture and horticulture, warehousing and distribution, and pharmaceutical and medical. With strict adherence to safety standards, our roll-up doors are designed to comply with the health and safety regulations specific to your industry. Featuring easy installation, our high-speed roll-up doors can be installed for door openings with wind pressure or negative pressure of less than 35kg/m2.
Upgrade your cold storage project today with our high-speed roll-up doors. Contact us now to learn more!
| Door slats | Our door slats are constructed from durable, high-density polyester fiber with a thickness of 0.9mm. The transparent window is made from high-quality PVC film with a thickness of 1.5mm. |
| Door frame (choose one out of two) | 1. The frame is crafted from extruded galvanized sheet, with a thickness of 1.8mm, and its surface is electrostatically sprayed 2. The frame is crafted from high-quality stainless steel plate, with a thickness of 1.8mm, and features a brushed surface treatment |
| Motor | Equipped with a powerful motor that has a power range of 0.75-1.5kW and operates on either 220V or 380V voltage |
| Control system | Housed in an IP55 box, it is compatible with various protective devices and can be used for excavation control. The PLC digital programming ensures safety for personnel, vehicles, and goods. With the manual joystick, it's easy to open and close. |
| Speed | With an upward speed range of 0.6-1.5 m/s and a downward speed range of 0.6-1.0 m/s, you can easily control the speed according to your requirements. Plus, with the help of the frequency converter, you can easily adjust the required speed for an optimal performance. |
| Applications | Indoors |
| Max. size (width × height ) | 6000mm×6000mm |
| Colors | Various colors available, yellow, blue, orange, gray, tangerine, etc. |
| Safety | Our roller shutter is equipped with safety light curtains installed on the door rails to ensure safe operation. |
| Optional | You can choose between a window or a visible strip window depending on your needs. We also offer optional top cover, side column cover, and motor cover for added protection and aesthetic appeal. |
