HSS Drill Bits

Request a Quote

View All: http://machinetoolblades.com/1-11-drill-bits-router-bits.html

Application

metal drilling.

Material

HSS (high speed steel) is a tool steel that features a high rigidity, high abrasion resistance and heat resistance, and it often used as the raw material for metal cutting tools require a higher sharpness.

Feature

The temperature will be high while grinding, as will the high speed steels’ rigidity.

Parameter

Material	Drilling bit diameter（mm）	Cutting speed （mm/min）	Feed （mm/r）	Feed speed（mm/min）
carbon structure steel and high-quality carbon structure steel	10	75.4	0.15	360
	15	89.5	0.18	342
	20	103.6	0.22	363
	25	117.8	0.25	375
	30	113	0.28	336
	35	104	0.3	285
	40	100.5	0.33	264
Cast iron	10	62.8	0.2	400
	15	84.8	0.22	396
	20	94.2	0.25	375
	25	102	0.28	364
	30	94.2	0.3	300
	35	93.4	0.33	280
	40	87.9	0.35	245

Our advantages

We have extensive experience in drill bit production. We utilize advanced technology with a high quality, ensuring a fast delivery.
100% inspection for shipping drilling bits.
Our products are of high quality and have a long service life
Other drilling bits can be customized with samples

Production capability

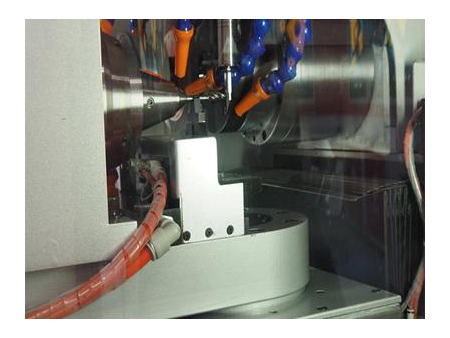

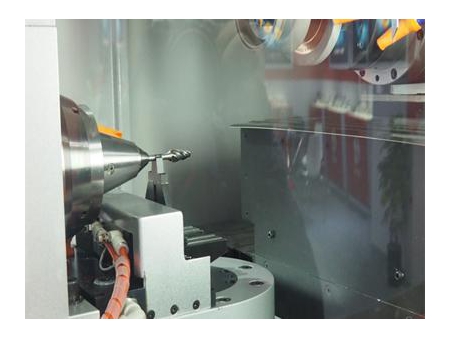

All the cutting tools and chucking are produced using automatic digital machines, thus achieving mass production. We have extensive stock, and can offer a fast delivery, between 7 to 10 days. We also have a design and operation team backed by extensive experience, which will ensure all production is carried out to meet customer requirements.
