Medical Endoscope Camera Module
Request a Quote

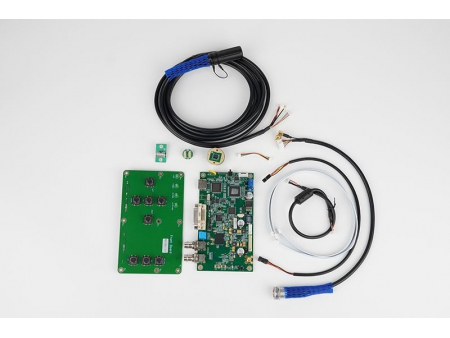

30fps 720*1280P Medical Endoscope Module, OS-SD283026-M802
This 30fps endoscope camera is made based on our own technologies to capture and record images and videos.
Features

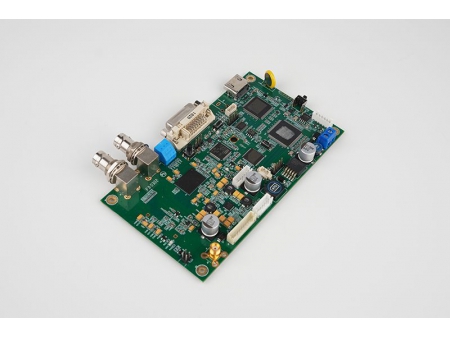

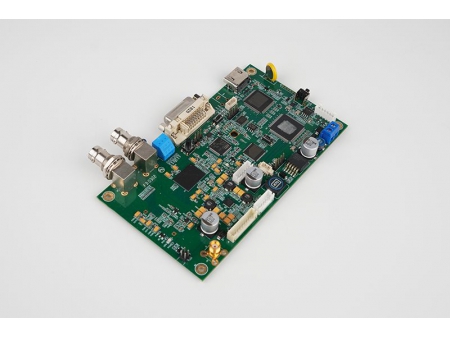

- This endoscope camera is able to transmit signals in accordance with HD-SDI standards. It also supports DVI/VGA/CVBS and SDI loop outputs;
- This endoscope camera is equipped with a 1/3" CMOS with 2 MP that delivers 720P*1280P imaging with 30 frames per second;

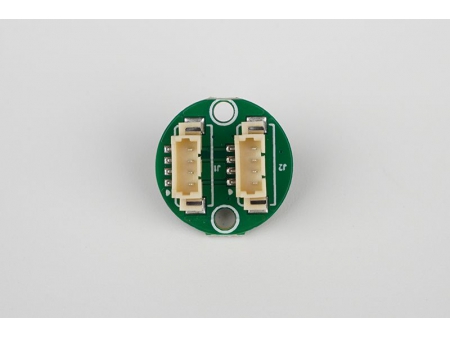

- The Ø26mm camera module features a compact design with three-layer circular panel;
- The energy cost is relatively small and the camera body will generate little heat during operation;

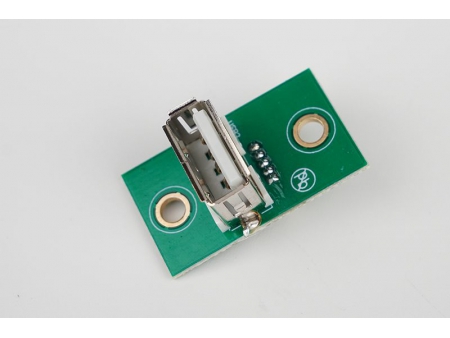

- This endoscope camera can carry out different functions, like white balance, image freeze. It is also equipped with a USB port and AD-KEY module;
- The control menu is tailored for the medical industry and for international users with multiple language options;
30fps 1080*1920P Medical Endoscope Module, OS-HD283026-M802
This 30fps Full HD endoscope camera is made based on our own technologies to capture and record images and videos.
Features
- This endoscope camera is able to transmit signals in accordance with HD-SDI standards. It also supports DVI/VGA/CVBS and SDI loop outputs;
- This endoscope camera is equipped with a 1/3" CMOS with 2 MP that delivers 1080P*1920P imaging with 30 frames per second;
- The Ø26mm camera module features a compact design with three-layer circular panel;
- The energy cost is relatively small and the camera body will generate little heat during operation;
- This endoscope camera can carry out different functions, like white balance, image freeze. It is also equipped with a USB port and AD-KEY module;
- The control menu is tailored for the medical industry and for international users with multiple language options;
60fps 1080*1920P Medical Endoscope Module, OS-HD286026-M802
This 60fps endoscope camera is made based on our own technologies to capture and record images and videos.
Features
- This endoscope camera is able to transmit Full HD signals in accordance with 3G-SDI standards. It also supports HDMI/DVI/CVBS/SDI standards;
- This endoscope camera is equipped with a 1/2.8" CMOS with 2 MP that delivers 1080P*1920P imaging with 60 frames per second;
- The Ø26mm camera module features a compact design with a T-shaped panel;
- The energy cost is relatively small and the camera body will generate little heat during operation;
- This endoscope camera is equipped with a powerful control system that allows you to carry out different functions and adjustments, like white balance, image freeze, brightness. It is also equipped with a USB port and AD-KEY module. RS-485 is enabled;
- The control menu is tailored for the medical industry and for international users with multiple language options;
4K Medical Endoscope Module, 4KH1-S/TX/RX 4KH1-M/O1/O2/T/U
Features
- Full HD large-scale raw image data rearrangement with DEMOSAIC through CMOS sensor
- Comes with 4K video recording function
- Supports video support: UHD (4K) - 12G SDI*1, DP*1, HDMI 2.0*1; FHD (1080P) - 3G SDI*1, DVI*2, HDMI 2.0*1, CVBS*1
- Effective pixel: 3840x2160 at 60 frames
- Full lamination for TP, capacitive multi-touch
- Supports RJ45, USB and RS485 interface
- Light source control linkage function on the camera handle (the same Brand)
- Supports white balance correction and screen freezing function
- IPX8 waterproof camera to prevent water immersion during surgery
- Special anti-interference treatment ensures no interference caused by high frequency electrosurgical knife electrode
- AI multi-level 3D airspace noise reduction
- Can store parameters of 10 scenarios
- AI image enhancement, dynamic contrast enhancement, edge enhancement
