LE513 Tube Emergency Bulkhead

Request a Quote

Website: http://ft-emergencylight.com/5-2-slim-led-emergency-bulkhead.html

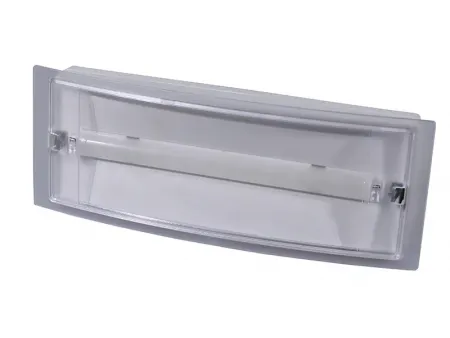

This slim LED emergency bulkhead is a good choice when you need compact lighting that doesn’t take up much space.

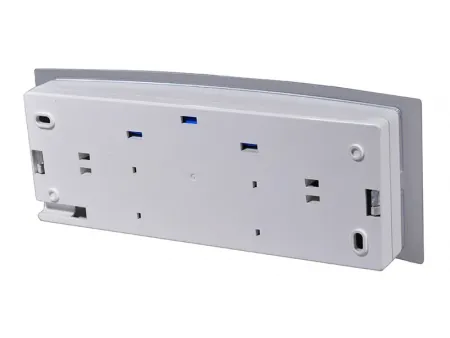

It combines an ABS base with a clear polycarbonate diffuser that protects the LEDs and distributes light evenly.
Fitted with 12 SMD2835 LEDs to provide reliable illumination during an outage.
Delivers up to 3 hours of emergency operation after charging.
The front diffuser can display self-adhesive signs to mark exits or escape routes.
A test button makes it easy to check the battery status and confirm that the unit is working properly.
Complies with IEC60598-2-22 standards and meets RoHS requirements for safer materials.
Rated IP20, suitable for indoor locations protected from moisture.

Specifications

Mode of Operation	Maintained /Non-Maintained
Voltage	220-240V 50-60Hz
Max. Power Consumption	2.6W
Output Voltage	DC 5V
Output Power	0.7W
Lumen Output	85lm
Battery	3.7V 1500mAh Li-ion battery
Max. Charge Current	100mA
Max. Discharge Current	280mA
Charging Time	24H
Discharging Time	3H
Lamp	SMD LED2835×12pcs
Certifications	CE, ROHS, IEC, BS, GS
Product Size	240×90×43.5mm
Remarks	Maintained 12pcs×LED (SMD2835)
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	Color box
Carton Size (L×W×H)	49×28.5×24cm
Carton CBM	0.034m³
Quantity per Carton	30pcs
Gross Weight	10kgs/ctn
Net Weight	9kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	24265pcs	50735pcs	59118pcs
