Activated Carbon Fiber Filter (ACF), FA Series Manufacturer

Activated Carbon Fiber Filter (ACF), FA Series

Request a Quote

View All: http://waterfilter-system.com/5-12-activated-carbon-fiber-filter-acf.html

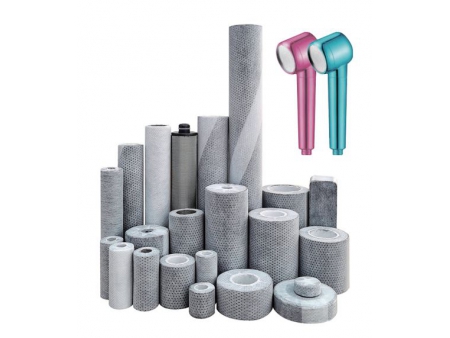

Replacement filter cartridge for water filter system

FA series replacement filter is a new generation of activated carbon fiber filter. More than 90% of ACF surface is composed of relatively uniform micropores with pore size less than 2nm. The adsorption capacity of activated carbon fiber is up to 10 times higher than that of granular activated carbon. This activated carbon fiber filter can remove contaminants at a concentration as low as PPB level.

Dimensions

End cap outer diameter (mm)	50	66	70	115	140
End cap inner diameter (mm)	16	28	28	30	80
Length (")	9.75	10	20	30	40	50

Material of Components

Filter media: high grade ACF
End caps: PP
Internal support: PP, PE
Outer cover: non-woven fabric
Sealing gasket: NBR or silicone rubber

Features

Significantly remove chlorine, organic contaminants, foul odor and smell
Excellent adsorption capability achieved by large specific surface area
High flow and low water pressure drop
Long service time
No black color water

Applicable Conditions

Water temperature: 5-60℃
Inlet water pressure: 0.1-1.0 MPa
Nominal micro rating: 5-20µm

Applications

Residential water purification
Commercial water purification
Food & beverage
Pharmaceutical, microelectronics, electroplating
