Full-Automatic Waste Tire Recycling Line

Full-Automatic Waste Tire Recycling Line
Full-Automatic Waste Tire Recycling Line
Request a Quote
Application

The fully-automatic waste tire recycling line is used for the recycling of various types of tires that are no longer suitable for use in their current state. By pulverizing waste tires to rubber particles or powders to prepare for further deep processing, the machine can produce rubber floor tiles, rubber mats, retread tires and produce a wide range of other rubber products.

Production line process

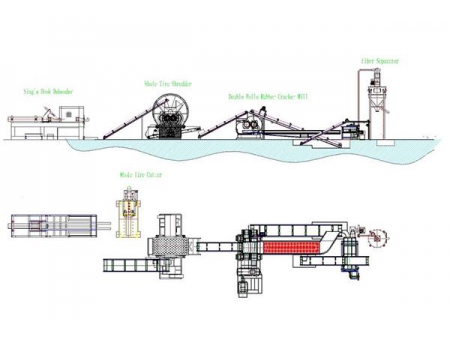

Use a bull block to separate the sidewall and tread. → Use tire cutter to cut the tire into big chunks. → Use whole tire crusher to crush tire chunks into 40-50mm tire chunks → Use rubber crusher to crush chunks into rubber particles. → Use rubber crusher auxiliary to screen out the needed particles and separate steel wires. →Use fiber separator to separate the qualified rubber particles from fiber.

Product description of Fully-Automatic Waste Tire Recycling Line
  • The whole production line can be easily operated by 2-3 workers.
  • The vulnerable parts of the machine are mainly cutters and cracker rollers, all of which can be replaced and recycled.
  • Features high automation with minimal reliance on manual labor, making the waste recycling process more efficient and freeing up resources for other tasks
  • Main components, such as wear parts, are designed to be easy to repair, greatly extending their usable lifespan
  • By utilizing energy-efficient motors and optimizing the roller speed ratios, our tire recycling line reduces energy consumption by approximately 15% compared to similar equipment, helping to lower operational costs while supporting sustainability goals
  • We offer specialized post-processing equipment and technical expertise for rubber powder production, providing a comprehensive solution that helps businesses effectively reach the end market
Our advantages
  • The fully-automatic waste tire recycling line has a long service life. Based on the working conditions, it usually can work for 2-3 years without any breakdown.
  • We will send technicians to assemble, adjust each production line and train workers as well, so as to ensure optimal operation.

There are multiple configurations available, depending on your production goals. In standard setups, the recycling line can handle a minimum of 500 kg of waste tires per hour. For higher-capacity operations, a single line can process up to 3 tons per hour without compromising efficiency.

These details are customized for each project. To prepare a precise layout and utility plan, we’ll need to confirm two key factors: the target size of the final rubber granules and your desired hourly output. Once this information is clear, we can define the footprint, power demand, and recommended staffing levels.

Rubber granules have a broad range of uses across different industries. They’re commonly processed into rubber floor tiles, protective mats, reclaimed rubber compounds, solid tires, and asphalt additives for road construction.

After the contract is finalized, we provide detailed installation drawings so you can prepare the foundation in advance. When the tire recycling machinery arrives on-site, our technicians will complete the installation and commissioning. Operator training is also included to make sure your team is ready to start production safely and confidently.
