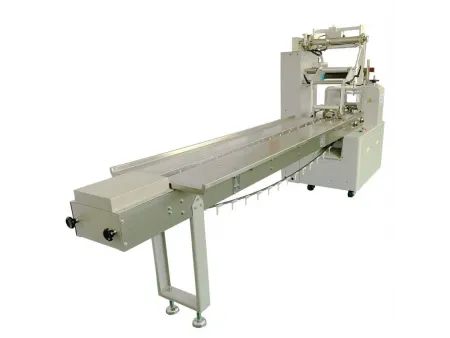

Horizontal Flow Wrapping Machine (Upper Reel)

Request a Quote

Website: http://papamachine-en.com/5-2-horizontal-flow-wrapping-machine-upper-reel.html

PA100 Food Packaging Machine

Industrial bagging and sealing machine for packaging protein balls, confectionery, food products and other bulk solids

Packing speed 35-220 bags/min
Bag size Length: 65-200mm
Width: 30-90mm
Height: 5-30mm
Film width 65-220mm
Bag material OPP, CPP, PT, PE, KPT, CPP, Alu-foil
Dimensions 4000×850×1600mm
Heat power 2.4kW
Motor power 0.2 0.4kW
Total power 3kw
Machine weight 550kg

Snack bar
Nut bar
Chocolate bar
Natural peach bar
Walnut stuffed cookie
Maamoul (date filled cookie)
Energy bar
Peanut bar
Date bar
Cracker biscuit

With this horizontal flow wrapping machine, you can efficiently package bread, snack bars, chocolates, block-shaped candies, and other bulk products with ease. Designed for smooth and precise operation, it runs on a servo motor, allowing you to wrap between 35 to 220 packs per minute. The machine also includes a date printing function and lets you customize the conveyor track to fit your product’s size.

Simplify your packaging process and improve efficiency with a fully automated solution. Get in touch today to customize a packaging system that works best for you!

Features

User-friendly interface for easy parameter settings.
Double frequency control (optional servo motor) for precise bag cutting in one step, saving time and packaging film.
Self-diagnostic function with failure display for quick troubleshooting.
High-sensitivity optical tracking ensures accurate cutting position.
Independent PID temperature control, adaptable for different packaging materials.
Precise stopping function, preventing film waste and cutter sticking.
Fully software-controlled system, making function adjustments and technical upgrades simple to keep the machine up to date.

Machine Details
