Al-Mg-Mn Alloy Wall Panels

Request a Quote

Website: http://bltbuilding.com/5-5-exposed-fastener-metal-wall-panels.html

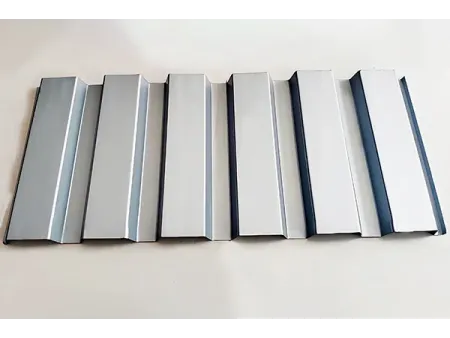

YX38-150-900

38mm depth×900mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 900mm
Overall width of sheet: 1250mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

Trapezoidal cladding panels combine a modern look with added structural strength, making them suitable for a wide range of exterior wall designs. They can be installed either horizontally or vertically, giving architects and builders more flexibility when creating customized façades.

Applications

Widely used in industrial plants, commercial complexes, office buildings, hotels, shopping centers, and exhibition halls. Their durable profile and modern lines make them an effective choice for projects that require both strength and aesthetic appeal.

Highlights & Applications

The 38 mm deep, 900 mm wide trapezoidal profile is designed for façades of exhibition halls, commercial buildings, and industrial workshops.
Panels are fixed to a galvanized steel framework (≥1.5 mm thick) with spacing up to 1200 mm, and can also be applied over concrete or steel structures.
Installation is usually vertical to highlight the height of the building, but panels can also be placed horizontally when the design requires.
Fastening is done with exposed screws, with joints secured from bottom to top and left to right, ensuring stability and straightforward installation.
Two profile options are available, both emphasizing bold, geometric lines that give façades a strong and modern appearance.

Components

Façade cladding
Joint cover strip
Vertical subframe (stud/keel)
Thermal insulation layer
Liner panel

Specifications

Model	YX38-150-900
Effective cover width	900mm
Overall width of sheet	1250mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Exposed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color, custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

A consistent trapezoidal profile enhances the overall look of exterior walls, giving them a refined and balanced finish.
Horizontal and vertical installation options, combined with a wide range of color choices, make it easier to achieve creative and distinctive façades.
Made from aluminum-magnesium-manganese alloy with PVDF coatings, the panels resist harsh weather, remain low-maintenance, and keep their appearance over time.
Their lightweight yet strong structure helps speed up installation, lowering both labor time and overall project costs.
