CNG & LNG Tractor Truck

Request a Quote

Website: http://heavytrucks-en.com/5-cng-lng-tractor-truck.html

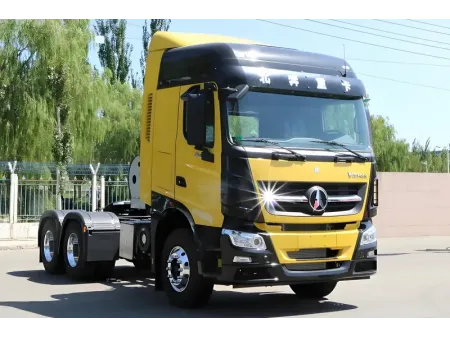

Designed for long-distance fuel efficiency without compromising power, this gas-powered tractor truck is equipped with a high-performance 13-liter engine delivering 460 horsepower at 1900 rpm. The 6×4 drivetrain ensures stable traction across varied terrain, making it well-suited for highway logistics and industrial transport.

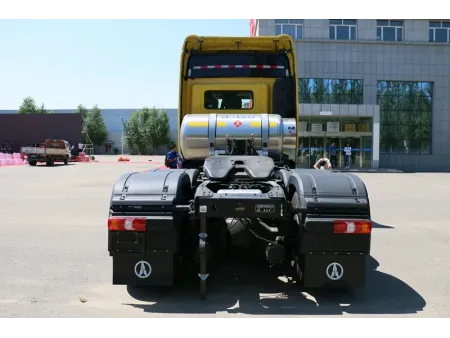

The CNG tractor truck comes with eight 260L tanks, while the LNG tractor unit is available with a 1000L or optional 1500L cryogenic tank, supporting extended range operations with reduced refueling stops. The flexible configuration allows it to meet diverse environmental and route-specific demands.

Engine power 460 HP / 1900 rpm
Fuel tank options CNG - 8×260L;
LNG - 1000L or optional 1500L
Drive mode 6×4
Vehicle dimensions Length 7500 mm,
width 2550 mm,
height 3700 mm

Dimensional Drawing

Specifications

Model	2646S CNG	2646S LNG
Driving Type	6×4
Cab	Cab Exterior Highway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab Interior Air-sprung suspension driver's seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments	Cab Exterior Highway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab InteriorAir suspension seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments
Engine	Type:WP13NG460E61 Version:EURO VI Displacement (I):12,540 Max. Power (HP/rpm):460/1900 Max. Torque (N.m/rpm):2300/1100~1300 Cylinder:6 in-line
Transmission	16JSDX240T / 16.69-1 Gears:16 speed forward Synchromesh or Constant Mesh:Synchromesh Transfer Box:not available Power take-off (P.T.O.):optional
Steering System	8098 Recirculating ball steering gear,hydraulic booster
Clutch	Ø430mm single dry friction disc,diaphragm spring,pushing type
Fuel Tank	CNG 8×260 L	LNG 1000 L
Front Axle	7500kg,non-drive steering
Middle & Rear Axle	11500kg 11500kg,single reduction driving axle,differential lock
Suspension	Front 3pcs / Rear 4pcs hard parabolic spring
Brakes	Service:dual circuit air brakes Emergency/Parking:spring potential brake Auxiliary:EVB,ABS
Electrical Equipment	Alternator:70Amp Starter Motor:5.5kW Batteries:2×12V – 135AH
Performance Data	Gradeability@GVM:30% Max. Geared Road Speed:80km/h Final Drive Ratio:3.7 (optional 4.11)
Tyre	Size and Ply Rating:12R22.5 Steel Rim
Dimensions	Wheel Base (WB):3800 1350mm Overall Length (OL):7500mm Overall Width (OW):2550mm Overall Height (OH):3700mm Front Overhang (FOH):1515mm Rear Overhang (ROH):625mm Front fitting radius of semi-trailer:2500mm Rear fitting radius of semi-trailer:2300mm
Total Vehicle Weight	11500kg	9700kg

*The above data is subject to the actual product.
