Description

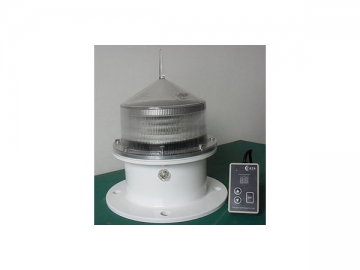

The small marine lantern has two models for customers to choose from: The ML-O155-03 lantern and the ML-O155-06 lantern. Their effective range of irradiation is 1-3 NM. The ML-O155-06 lantern is a newly developed LED marine signal lantern that has 3 intensity outputs: 4, 5 and 6 nautical miles, for site selection. This LED marine lantern also has a long service life. The small marine lanterns are commonly used on buoys and beacons out at sea.

Product selection:

ML-O155-03

ML-O155-03 Lantern Patent No.:ZL200620043738.7
Application results show:

Intensity and Range
Red Green

Range selection	Power	Max. intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)	Range selection	Power	Max. intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)
3nm	0.72W	25cd	3.6nm	17.86cd	3.2nm	3nm	0.72W	30cd	3.8nm	21.43cd	3.3nm
2nm	0.36W	12cd	2.7nm	8.57cd	2.4nm	2nm	0.36W	16cd	3.1nm	11.43cd	2.6nm
1nm	0.12W	4cd	1.8nm	1.29cd	1.1nm	1nm	0.12W	5cd	2.0nm	3.57cd	1.6nm

Yellow White

Range selection	Power	Max. intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)	Range selection	Power	Max. intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)
3nm	0.72W	24cd	3.6nm	17.14cd	3.2nm	3nm	0.72W	28cd	3.7nm	20cd	3.3nm
2nm	0.36W	16cd	3.1nm	11.43cd	2.6nm	2nm	0.36W	15cd	3.0nm	10.71cd	2.6nm
1nm	0.12W	4cd	1.8nm	2.86cd	1.5nm	1nm	0.12W	5cd	2.0nm	3.57cd	1.7nm

ML-O155-06

ML-O155-06 Lantern Patent No. ZL200620043738.7
Application results show:

Intensity & Range
Red Green

Range selection	Power	Max intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)	Range selection	Power	Max intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)
6nm	6.00W	210cd	6.6nm	150cd	6.0nm	6nm	5.40W	230d	6.7nm	164cd	6.1nm
5nm	4.32W	121cd	5.6nm	86cd	5.2nm	5nm	4.08W	155cd	6nm	110cd	5.5nm
4nm	2.76W	76cd	5.0nm	54cd	4.5nm	4nm	2.64W	90cd	5.3nm	64cd	4.7nm

Yellow White

Range selection	Power	Max intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)	Range selection	Power	Max intensity	Range (T=0.74)	0.5s intensity	Range (T=0.74)
6nm	6.00W	175cd	6.2nm	125cd	5.6nm	6nm	5.40W	210d	6.5nm	150cd	6.0nm
5nm	4.32W	110cd	5.5nm	78cd	5.0nm	5nm	4.08W	150cd	6.0nm	107cd	5.4nm
4nm	2.76W	70cd	4.9nm	50cd	4.4nm	4nm	2.76W	90cd	5.3nm	64cd	4.7nm

Feature:
1.Supper bright LED save energy
2.Patent optic design insure high light efficiency
3. High horizontal intensity uniformity
4.Computer chip control achieve high reliability
5.Line controller set range and rhythm / No need to open lantern
6.UV resistant PC for lens
7.Aluminium alloy base with special treatment suits marine environment
8.Pass EMC test
9.Light weight and easy installation

Specifications
Light source: Supper bright LED
Input voltage: DC12V (10~40V)
Vertical divergence: ≥7.5° (I50%)
Sun switch: 250±50 lx
Flash rhythm: 256 rhythms site selectable
Idling current: ≤4mA
Temperature: -35℃~ 55℃
Protection: IP67

Optional: GPS synchroflash and remote control.
Special lantern for IALA Emergency Wreck Signal (fixed range and rhythm):
Blue 1 (0.5) Yellow 1 (0.5) =3 second Range: 4 nm (T=0.74) Power: 4W
Weight: 5kg (include 5m cable)
