Mid-Sized Marine Lantern

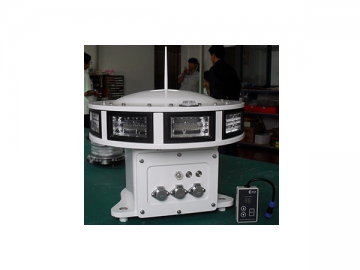

The ML-O400-18 lantern is a newly developed medium and long range LED marine signal lantern. Using an LED light source, light tiers, and by changing the output pattern, the marine lantern reaches a range of 18nm (white 1s flash, T=0.74). With a flashing performance, the lantern has 256 rhythms for site selection. The marine LED lantern uses a sealed LED light source to form a 360 degree horizontal beam. It is easy to change the light source in the event one fails. This lantern requires very little maintenance, and it's reliable, relying mostly on solar power to fuel it.
Features & Benefits
1.Supper bright LED light unit save energy
2.Patent optic design insure high light efficiency
3.High horizontal intensity uniformity
4.Computer chip control achieve high reliability
5.Line controller select rhythm / No need to open lantern
6.Pass EMC test
7. Aluminium alloy base with special treatment suits marine environment
Specifications
Light source: Sealed supper bright LED light unit
Input voltage: DC12V (10~18V); DC24V (18~33V); AC100C~240V
Vertical divergence: ≥6° (I50%)
Sun switch: 250±50 lx
Flash rhythm: 256 rhythms site selectable
Idling current: ≤4mA
Temperature: -35℃~ 55℃
Protection: IP66
Intensity & Range
Please indicate when purchase if you need other light color, light unit combination, GPS synchro-flash and remote control.
| Color | Max Power | Max intensity | Range T=0.74 | 1s Flash intensity | Range T=0.74 | 0.5s Flash intensity | Range T=0.74 |
| White | 145W | 15000cd | 15.2nm | 12000 | 14.4nm | 10000 | 14.3nm |
| Red | 120W | 8000cd | 13.8nm | 6600 | 13.3nm | 5600 | 12.9nm |
| Green | 140W | 11000cd | 14.5nm | 9100 | 14.1nm | 7800 | 13.6nm |
