Plastic Crushing Machine, DB-900
Request a Quote
In-line crusher for crushing and recycling of plastic wastes
Simplify your recycling process with the plastic crushing machine. It connects directly to cup-making machines, multi-station thermoforming machines, and plastic sheet extrusion machines to quickly crush and recycle edge trims and waste materials. Save space, cut costs, and improve efficiency. Contact us today to see how the plastic crushing machine can help streamline your production.
Features

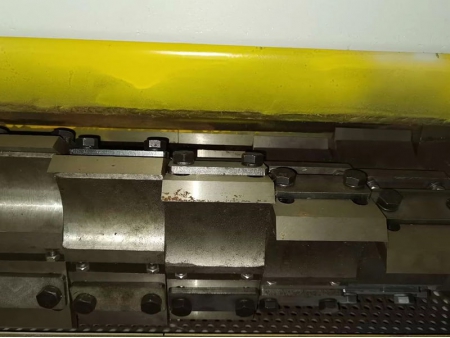

- The blades can be repeatedly sharpened. The cutter head and knife holder are fastened with high-elasticity screws, ensuring exceptional durability and strength.
- Effortlessly crushes a wide range of soft and hard materials.
- Compatible with plastic cup thermoforming machine and multi-station thermoforming machine for integrated operations.
Applicable Materials
PP, PS, PVC, HIPS
Specifications
| Max. infeed width | 900mm |
| Feed inlet structure | Dual roller with variable frequency control |
| Main motor power | 11kW |
| Rotation speed | 900rpm |
| Crushing conveying motor power | 4kW |
| Fan speed | 2800rpm |
| Traction motor power | 0.75kW |
| Number of fixed blades | 4 |
| Number of rotary blades | 9*3=27 |
| Blade material | SKD11 |
| Crushing chamber size (L×W) | 850×250mm |
| Max. crushing capacity | 500kg/h |
| Noise level | 80dB (A) |
| Screen mesh size | 10mm |
