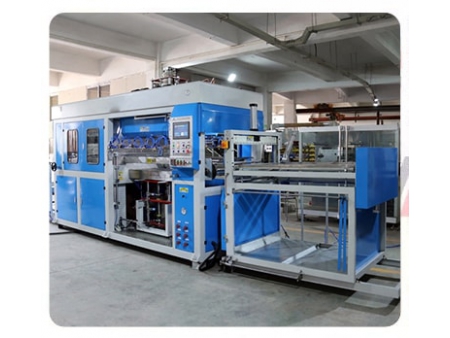

Vacuum former for making plastic packaging containers

Expand your packaging production capabilities with the plastic vacuum forming machine. This efficient system handles PP, APET, PVC, HIPS, PS, PET, and PE sheets, perfect for manufacturing boxes, trays, fast-food containers, plates, lids, biscuit trays, egg trays, mobile phone trays, and various blister packs.

Applicable Materials

PP, APET, PVC, HIPS, PS, PET, and PE sheets

Applications

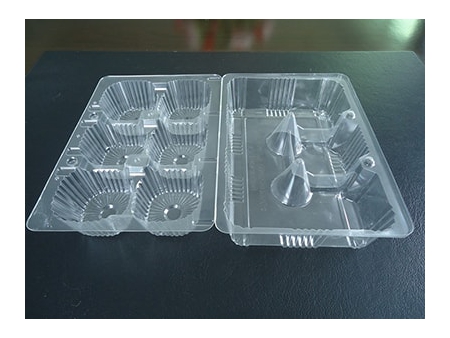

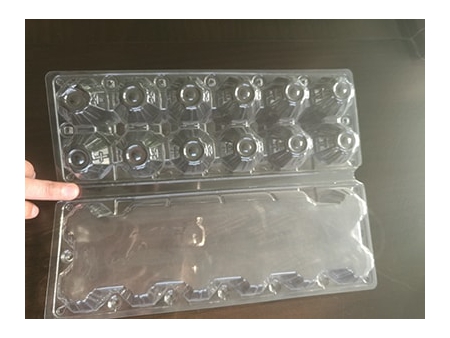

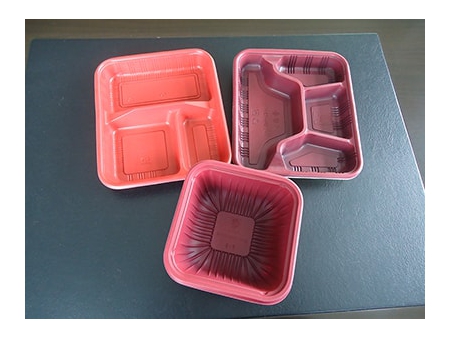

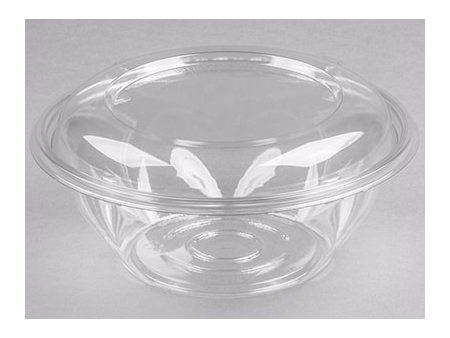

Ideal for creating boxes, trays, fast-food containers, plates, lids, biscuit trays, egg trays, phone trays, and other blister packaging.
Contact us today to find out how this vacuum forming machine can enhance your plastic packaging production.

Specifications
Max. forming area 720×1220mm
Forming depth 0-165mm
Production capacity 200-600 times/hour
Sheet thickness 0.1-2mm
Forming times 1 or 2 times
Oven power 30kW
Vacuum pump power 3.0kW
Power supply 380V 50Hz 3P
Dimensions (L×W×H) 8800×1500×2500mm
Weight 3000kg
Flow rate 100cm³/min
Features
  • Entire production process is PLC-controlled, integrating seamlessly with modern computing systems.
  • Vertical cylinder sheet pulling design ensures rapid forming, reducing processing time, saving energy, and guaranteeing consistent product quality.
  • Infrared ceramic heaters with individual temperature regulators provide precise heat control, achieving over 50% energy savings compared to traditional heaters.
  • Enclosed furnace heating chamber offers uniform heating and minimal heat loss. Includes manual switch for easy vertical adjustment, enhancing operational control and consistency.
  • Equipped with air cooling, water cooling, and high-speed cold water spray systems to accelerate forming speed and maintain superior product quality.
