Thermoforming machine for making plastic packaging containers

DB-5476 BOPS Plastic Thermoforming Machine
DB-5162 BOPS Plastic Thermoforming Machine
DB-7095 BOPS Plastic Thermoforming Machine
DB-6378 BOPS Plastic Thermoforming Machine

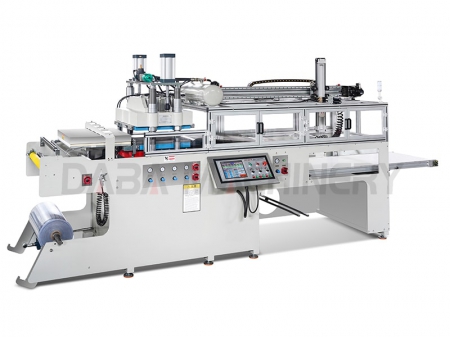

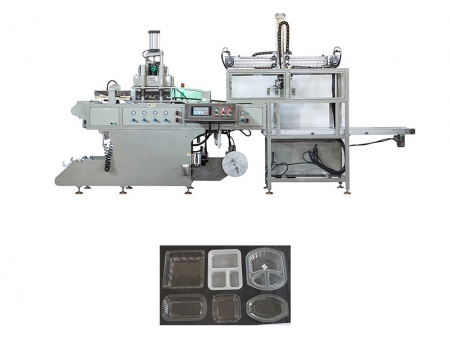

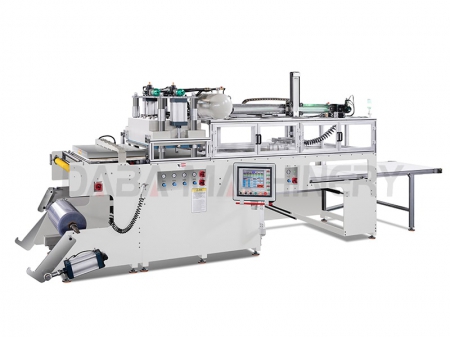

This series of plastic thermoforming machines is composed of mechanical, electrical, and pneumatic components. The entire system is controlled by a micro PLC, allowing for human-machine interface operation. It integrates feeding, heating, forming, cutting, and stacking into one seamless process.

Applications

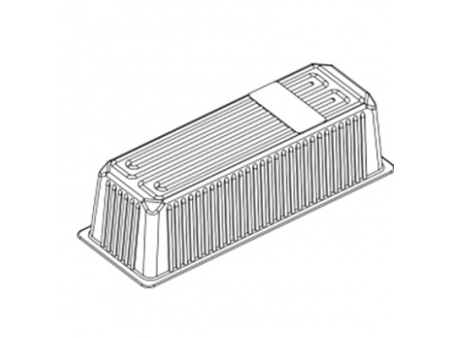

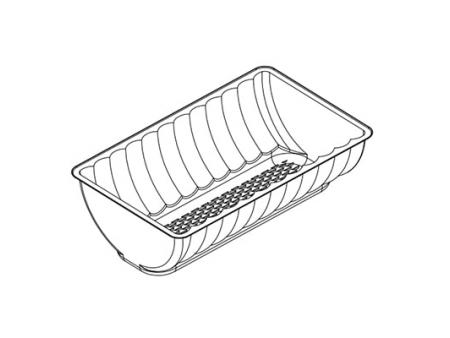

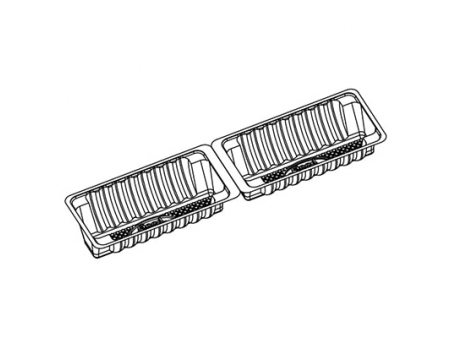

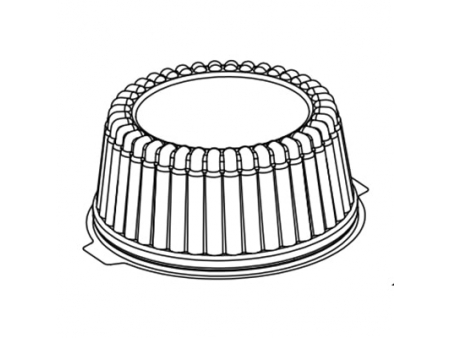

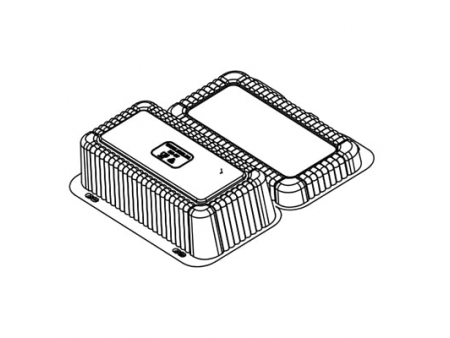

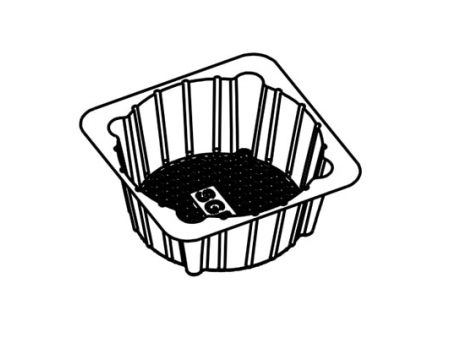

Suitable for BOPS, PS, APET, PVC, and PLA plastic sheeting rolls, this plastic thermoforming machine is ideal for producing a wide range of lids, plates, trays, and clamshell containers. Typical applications include lunch box lids, sushi boxes, paper bowl lids, aluminum foil lids, mooncake trays, pastry trays, food service trays, supermarket display trays, oral liquid packaging, and pharmaceutical injection trays.

Specifications
Model
DB-5162
DB-5476
DB-6378
DB-7095
Max. forming area 510×620mm 540×760mm 630×780mm 700×950mm
Max. forming depth 100mm 120mm 125mm 125mm
Total trimming knife length APET:6000mm
PVC PLA:7000mm
OPS:10000mm
APET:9000mm
PVC PLA:10000mm
OPS:13000mm
APET:9000mm
OPS:13000mm
APET:12000mm
OPS:18000mm
Sheet thickness 0.10-1.0mm 0.10-1.0mm 0.12-1.0mm 0.15-1.0mm
Air pressure 0.7Mpa 0.7Mpa 0.7Mpa 0.7Mpa
Air consumption 1500 L/min 1800 L/min 2000 L/min 2400 L/min
Water consumption 5 L/min 6 L/min 8 L/min 15 L/min
Power consumption 7.5kW/h (approx.) 9kW/h (approx.) 10kW/h (approx.) 14kW/h (approx.)
Heating power 24kW 30kW 40kW 50kW
Motor power 8kW 9kW 9kW 12kW
Power supply AC 380V±15V 50/60HZ AC 380V±15V 50/60HZ AC 380V±15V 50/60HZ AC 380V±15V 50/60HZ
Production capacity 600-1200 cycle/h 600-1200 cycle/h 600-1200 cycle/h 600-1400 cycle/h
Max. sheet roll diameter 710mm 710mm 800mm 1000mm
Max. sheet roll width 680mm 810mm 810mm 1000mm
Dimensions Machine: 2950×1550×2350mm Stacker: 2670×960×2350mm 5000×1750×2500mm 5600×1750×2500mm 6590×1760×2720mm
Weight 3500kg 4800kg 5200kg 7000kg
Features
  • Servo-driven system for smooth motion, high efficiency, and energy savings.
  • Built-in memory storage system for quick access and data retention.
  • Multiple selectable operating modes for versatile production needs.
  • Intelligent diagnostic analysis for quick troubleshooting and optimized performance.
  • Quick-change mold air baffles for efficient setup and reduced downtime.
  • In-mold cutting ensures consistent and precise trimming.
  • Low energy consumption with high utilization rates, maximizing production efficiency.
  • Machine supports 180-degree rotation and offset stacking for flexible arrangement.
  • Low failure rate for reliable and continuous operation.
