Sheet Metal Punching and Laser Cutting Machine

LAP Series

Sheet Metal Punching and Laser Cutting Machine

LAP Series

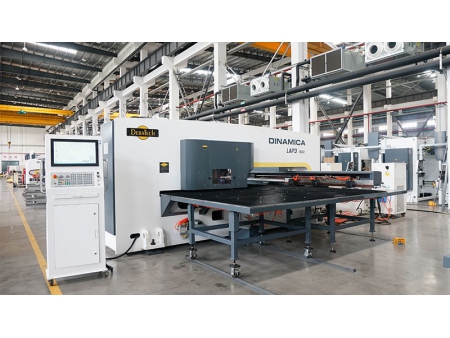

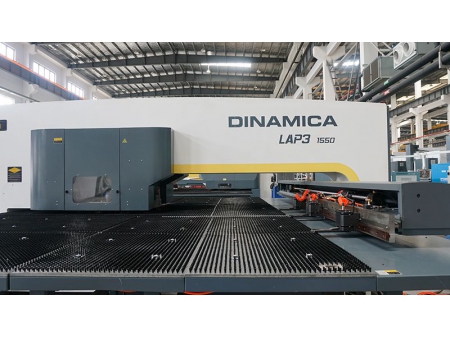

CNC punch-laser combination machine seamlessly combines servo punching technology with 2D laser cutting technology, offering users a highly flexible sheet metal processing equipment. This machine is ideal for processing irregular contours and high value-added parts, while delivering advantages such as cost-effectiveness, compact structure, small footprint, and low power consumption.

Parameters
Model Unit LAP31550 LAP32050 LAP31560 LAP32060
Processing capacity Punching force KN 300 300 300 300
Laser power kw 1.5 1.5 1.5 1.5
Max. sheet size (with repositioning) mm 1500×5000 2000×5000 1500×6000 2000×6000
Max. operating Speed Punch m/min 100(X:80, Y1:60) 100(X:80, Y1:60) 85(X:60, Y1:60) 85(X:60, Y1:60)
Laser m/min 120(X:80, Y2:90) 120(X:80, Y2:90) 110(X:60, Y2:90) 110(X:60, Y2:90)
Punching speed (times per minute) hpm 1500 1500 1500 1500
Number of control axis 7 7 8 8
Punching accuracy mm ±0.1 ±0.1 ±0.1 ±0.1
Dimensions (L×W×H) mm 8600×6600×2300 9600×6600×2300 8600×8100×2350 9600×8100×2350
Details
  • Machine Frame

    O-type frame offers good rigidity and small deformation.

  • Turret

    The turret has 2 revolving positions to meet user requirements for punching and cutting at different angles. The maximum bore diameter for single processing is 88.9mm.

  • Drive System

    High precision ball screw drive integrates two sets of independently driven punching axis and laser cutting axis.

  • Fiber Laser Source (IPG1500W)

    The laser source comes with inherent fully-closed optical path, featuring free maintenance and a lifespan exceeding 100,000 hours.

  • Laser Cutting Head

    Germany Precitec Light Cutter offers automatic focusing according to the thickness and material of the sheets.

  • Compressed Air Dryer & Filter

    American Parker compressed air dryer and filter is equipped, which greatly enhances the cutting quality and provides better protection for optical components.
    Note: Air compressors are provided by customers.

  • HAWE Proportional Valve
  • Vibration Isolation System
  • Safety Protection Device
  • Flexible Loading & Unloading Device
  • Cutting Dust Removal System
  • CNC System and Automatic Programming Software

    German LTI CNC control and servo drive
