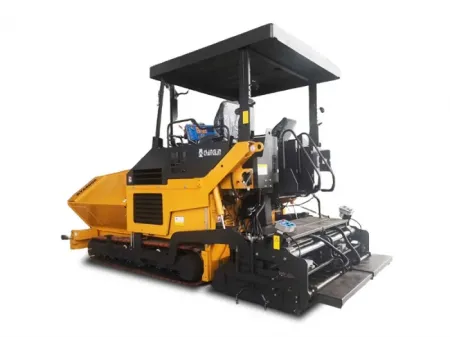

GYA9000 Track Asphalt Paver
This large-scale multifunctional track asphalt paver features high-quality imported tracks with excellent wear resistance and extended service life. With a track contact length of 3,240 mm, the paving mahine delivers enhanced operational stability. Powered by a Cummins 6-cylinder electronic injection engine rated at 133kW, it offers exceptional output and power reserve, ensuring reliable performance even under demanding conditions. The engine meets Euro III emissions standards and is known for its ease of maintenance and cost efficiency.
- Max. paving width 9 m
- Max. paving thickness 450 mm
- Theoretical productivity 1000 t/h
High-performance track system
The paver adopts dual-track drive with independent full-hydraulic control on both sides, offering stepless speed adjustment. It uses high-quality Yong Peide track assemblies known for durability and stability. With a 3,240 mm track contact length and 300 mm track width, it ensures consistent paving results.
Independent material feed system
Equipped with four independent full-hydraulic systems for feeding and distribution, the paving machine ensures uniform, proportional delivery of materials across the screed.
Advanced cooling performance
The German AKG composite radiator features a large heat dissipation surface and forced centralized cooling, supporting continuous operation in ambient temperatures up to 50°C.
Enhanced screed strength and wear resistance
The high-rigidity screed base is made from imported wear-resistant plates, while the auger drive uses a reinforced chain design with 30% increased strength for greater reliability during high-load applications.
General
- Traveling type Crawler
- Basic paving width 2.5m
- Max. paving width 9m
- Max. paving thickness 450mm
- Paving speed 0-20m/min
- Travel speed 0-3.6km/h
- Theoretical productivity 1000t/h
- Hopper capacity 16t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 1.5mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -6%
Engine
- Manufacturer Cummins
- Fuel tank capacity 200L
- Rated power 133kW
- Rated speed 2200rpm
- Electric system 24V
