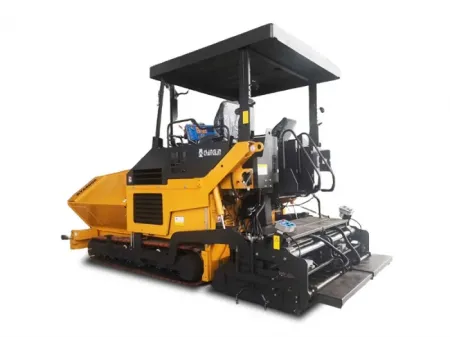

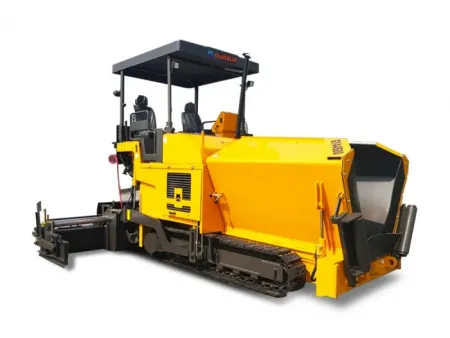

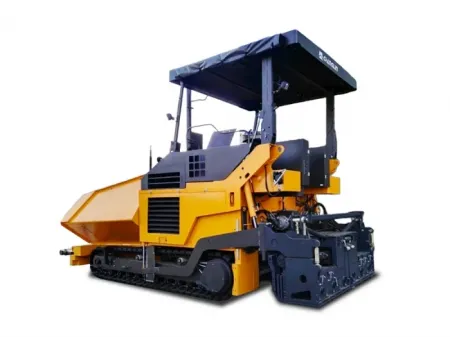

GYA6000 Track Asphalt Paver
Request a Quote

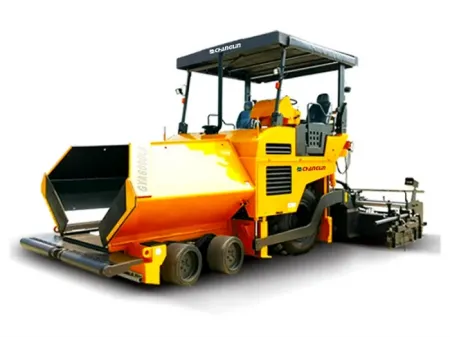

This mid-sized track asphalt paver supports a standard paving width of 2.5 meters and extends up to 6 meters. Designed for medium-scale road construction, it utilizes either tracked or wheeled configurations to ensure uniform asphalt distribution, preliminary compaction, and smooth surface shaping. It delivers consistent layer thickness, surface flatness, and compaction density to meet project specifications.
- Max. paving width 6 m
- Max. paving thickness 300 mm
- Theoretical productivity 600 t/h
Technical Specifications
General
- Traveling type Crawler
- Basic paving width 2.5m
- Max. paving width 6m
- Max. paving thickness 300mm
- Paving speed 0-20m/min
- Travel speed 0-3km/h
- Theoretical productivity 600t/h
- Hopper capacity 14t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 2mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -1 to 3%
Engine
- Manufacturer Cummins
- Fuel tank capacity 200L
- Rated power 133kW
- Rated speed 2200rpm
- Electric system 24V
