Features
  • COLO-5219 powder coating oven provides constant temperature and optimum curing environment for objects.
  • Working size of 1.8 x 1.9 x 5m suits for curing longer objects or big batches.
  • Taking natural gas as fuel is the best choice for the big sized oven, time-saving and cost-saving.
  • Fully assembled shipment, gives a quick start of your powder coating production.
  • Accept custom sizes & configurations as we have professional technical team.
Specifications
Model COLO-5219
Operating dimensions 1900 width x 1900 height x 5000 depth mm
Overall dimensions 2100 width x 2200 height x5200 depth mm
Power supply LPG / natural gas / diesel
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability <± 3-5°C
Temperature Max. 250°C
Ventilation performance 8288-16576m3/h
Motor power 7.5 kW
Burner Italy Riello, 200,000kcal
Details

Oven Materials

  • The powder coating oven utilizes a sandwich structure design.
  • Rock wool board insulation of at least 100mm thick is inserted between galvanized inner wall and color-steel external skins to get an optimum insulation effect.

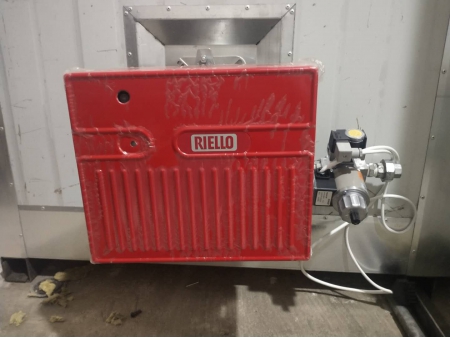

Burner

Italy imported Riello burner takes full utilization of fuels to warm the entire chamber and gives much quicker raise to a required temperature.

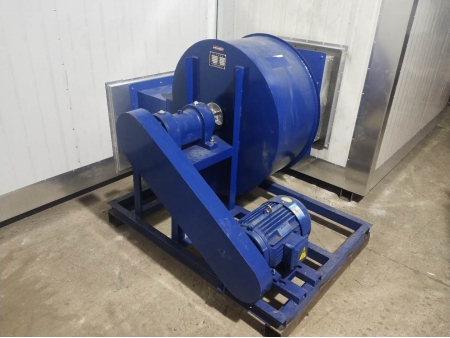

Circulation Fan

Circulation fan cycles the hot air through the entire chamber, which maintains a uniformly heated chamber and ensures objects to be heated evenly.

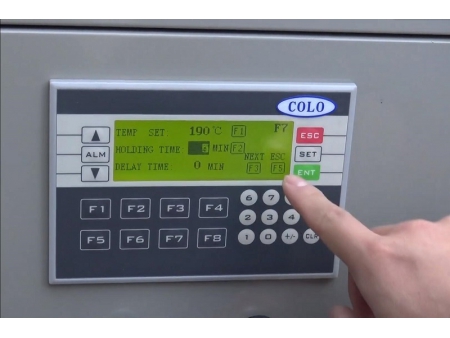

PLC Controller

  • The heating unit and fan system are controlled via the PLC controller.
  • Operators could accurately set the desired temperature and heating time on the panel. Data will be shown on the LED screen clearly.

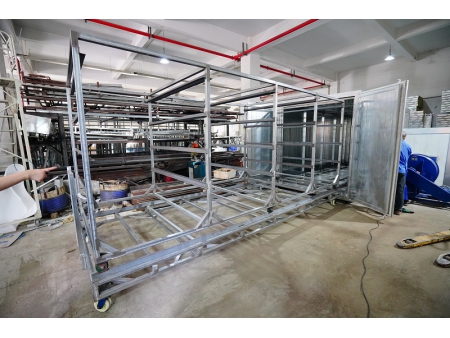

Transport System

Two sets of trolleys equipped ensures high purity painted elements. The inner trolley with loaded objects will be pushed into the oven chamber for curing circles, whose castor movement across the track makes it less manual efforts of operation. Outer trolley helps to carry the inner trolley for outside transportation.
