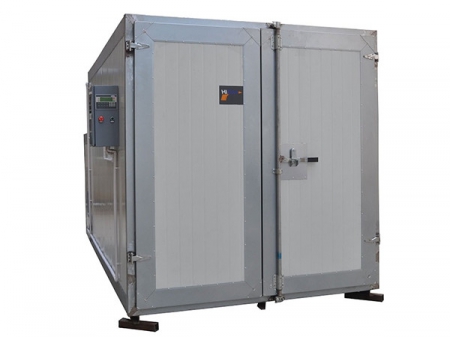

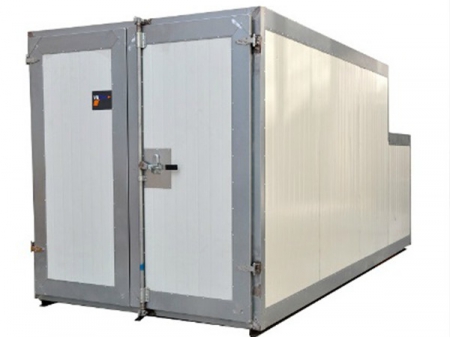

Gas Powered Powder Coating Oven
Request a Quote
Features
- COLO-3210 gas powder coating oven provides constant temperature and optimum curing environment for objects.
- Working size of 1.9x2x3.1m suits for curing longer objects or big batches production requirements.
- Taking natural gas or diesel or LPG as fuel is the best choice for the big sized oven, time-saving and cost-saving.
- Fully assembled shipment, gives a quick start of your powder coating production.
- Accept custom sizes & configurations as we have professional technical team.
Specifications
Oven Materials | Model | COLO-3210 |
| Operating dimensions | 2000 width x 1900 height x 3100 depth mm |
| Overall dimensions | 2200 width x 2100 height x 3300 depth mm |
| Power supply | LPG / Natural Gas / Diesel |
| Voltage | 220V/380V |
| Frequency | 50-60 Hz |
| Warm-up time | 15-30min (180°C) |
| Temperature stability | <± 3-5°C |
| Temperature Max. | 250°C |
| Ventilation performance | 8288-16576m3/h |
| Motor power | 4 kW |
| Burner | Italy Riello, 100,000kcal |
Controller
- The powder coating oven utilizes a sandwich structure design.

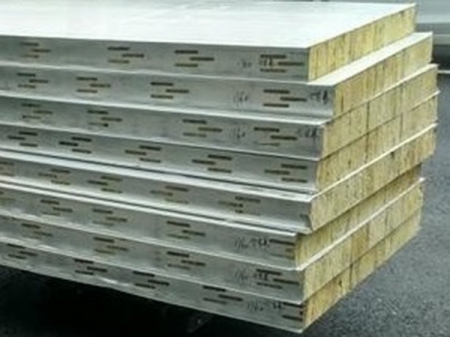

- Rock wool board insulation of at least 100mm thick is inserted between galvanized inner wall and color-steel external skins to get an optimum insulation effect.

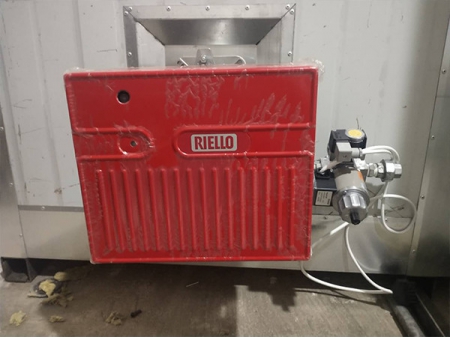

Burner
Italy imported Riello burner takes full utilization of fuels to warm the entire chamber and gives much quicker raise to a required temperature.

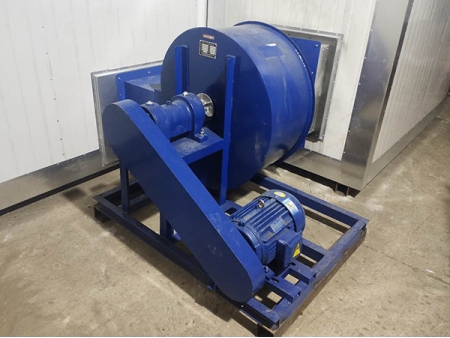

Circulation Fan
Circulation fan cycles the hot air through the entire chamber, which maintains a uniformly heated chamber and ensures objects to be heated evenly.

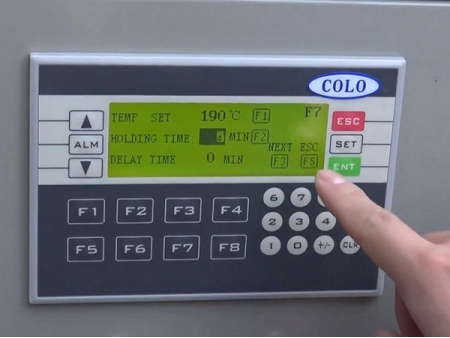

PLC Controller
- The heating unit and fan system are controlled via the PLC controller.
- Operators could accurately set the desired temperature and heating time on the panel. Data will be shown on the LED screen clearly.

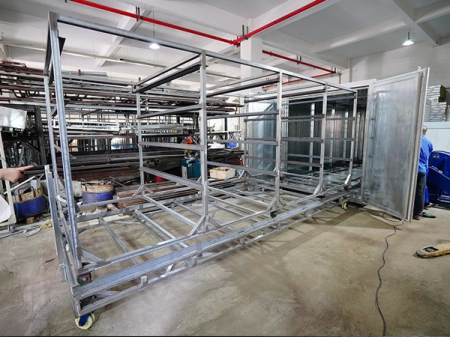

Transport System
Two sets of trolleys equipped ensure high purity painted elements. The internal trolley with loaded work parts will be pushed into the oven for curing circles, whose castor movement across the track makes it less manual efforts of operation. External trolley helps to carry the internal trolley for outside transportation.
