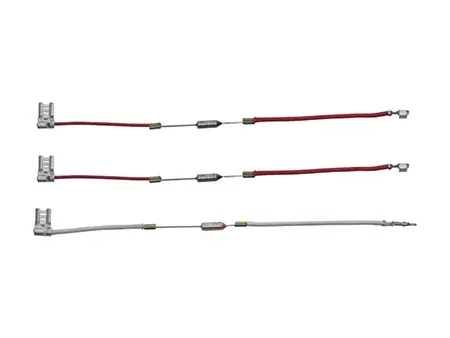

This thermal fuse crimping and heat shrinking equipment combines tasks such as dual-end crimping, single-end stripping, heat shrinking, and fuse pin cutting into a seamless workflow. It is compatible with a wide range of thermal fuses, including G2, G5A01, SF119PDHR, RY121TF, RY110TF, and SFH113E, and supports 18AWG-26AWG wires made from PVC, Teflon, and halogen-free materials. Whether assembling high-temperature wiring or intricate fuse connections, it ensures efficiency and adaptability for demanding production lines.

Crimping Capacity
  • 1,300 to 1,500 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 1400×935×1600mm
Weight 750kg
Power Supply AC220V 50Hz
Rated Current 15A
Power 5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×2.2m
Crimping Force 3T
Functions Crimping Capacity 1300-1500 wires/hr (depending on the wire length)
Wire Processing Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided stripping and thermal fuse crimping, Two-sided crimping and heat shrink tube insertion Two-sided stripping and thermal fuse crimping
Control System LCD display, single-chip microcontroller
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length Leaving glue space 40-500mm
Stripping Length Front: 0.1-13mm, Rear: 0.1-13mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG18#-AWG26#)
Features
  • Servo motor technology provides precise positioning and fast processing speeds, ensuring consistent results for wire crimping, stripping, and fuse assembly.

  • Fuse pins are automatically cut to customizable lengths ranging from 8mm to 30mm, offering flexibility for various production needs.

  • Adaptable to 18AWG-26AWG wires, the thermal fuse crimping machine processes PVC, Teflon, and halogen-free materials, accommodating a variety of applications with ease.

  • The real-time error monitoring system displays alerts on a touch screen, simplifying troubleshooting and maintaining smooth operation.
