Graded Depolymerization and Dispersing Machine Manufacturer

Graded Depolymerization and Dispersing Machine

Request a Quote

View All: http://cnmicronizer.com/9-1-powder-grinding-and-classifying-machine.html

LHV

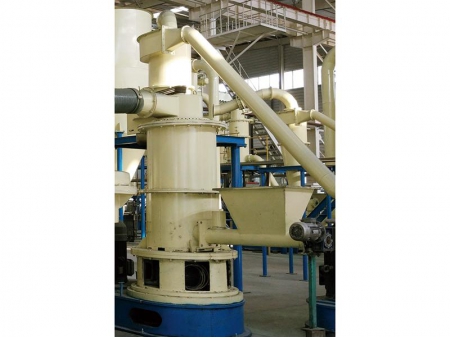

LHV Powder Grinding and classification Machine is independently developed by our company. The finished product produced by this equipment has high particle size reduction rate, the original appearance of the particles will not be destroyed, and the large particles can be strictly filtered. This equipment has been widely used in the preparation of high-end powders in the new materials. At the same time, the machine can be used for the material surface modification to increase the tap density and change the particle appearance.

Technical Specifications

Model	LHV-500	LHV-1000	LHV-2000
Main Power (kw)	22~30	45~55	75~90
Fineness (um)	1-45	1-45	1-45
Capacity (t/h)	0.5-1	1-2	2-4

Working Principle

Materials are fed into the grinding chamber where they undergo depolymerization through impact, collision, friction, shearing, and compression caused by high-speed rotating components and particle interactions. Once the material is processed, the classifier wheel separates the coarse and fine powders. Coarse particles are returned to the grinding chamber for further refinement, while purified air is discharged through the exhaust fan.
