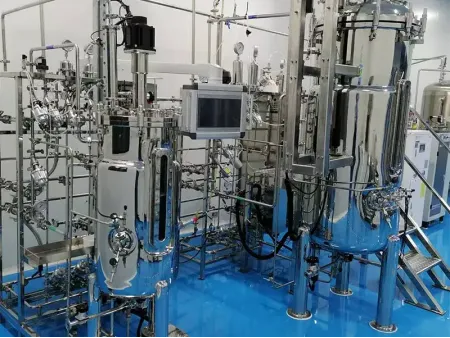

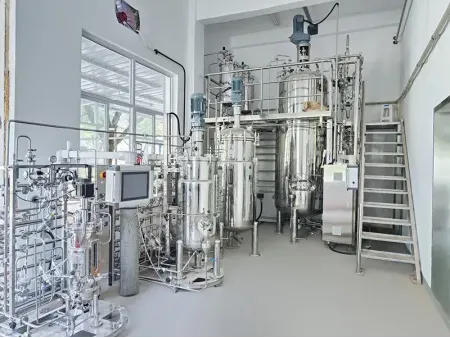

The Automatic Multistage Continuous Bioreactor is a bioreactor system that combines scalability with integrated control. Designed specifically to simulate the microbial process scale-up, it can operate multiple fermentation stages (continuous or parallel) simultaneously, ensuring a smooth transition of processes from laboratory development to industrial production.

• Capacity:
  1. First-Stage Seed Vessel: 30L / 50L / 100L
  2. Fermentation Vessel: 300L / 500L / 1000L / 2000L
  3. Customizable range: 5L - 1000L, supports multi-stage customization
• Vessel Material: SUS316L / SUS304 Stainless Steel
• Surface Finish: Inner surface High-Precision Polish (Ra≤0.4); Outer surface polish (Ra≤0.6)
• Working Volume: 30% - 75%
• Temperature: Heating/Cooling dual control; Precision: ±0.2℃
• pH: 0-12 (±0.01), Bi-directional Auto-Regulation (Acid/Alkali)
• DO (Dissolved Oxygen): 0-200% (±0.1)
• Sterilization: Fully Automatic SIP (Steam-In-Place). Includes sterilization timing, pressure holding, and independent filter sterilization
• Pressure: 0 - 3 bar (Precision 0.01 bar), supports digital setting and automatic regulation

Features advanced automation capabilities, including full automatic measurement and control of flow rates and pressure, allowing for fully simulating the operation of large-scale industrial vessel operations.
