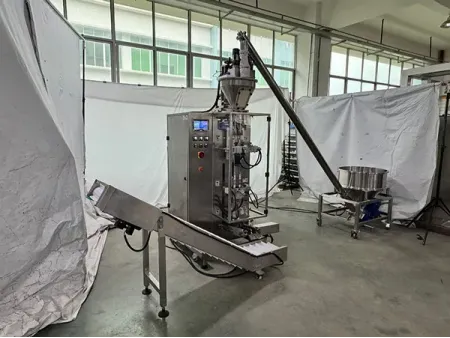

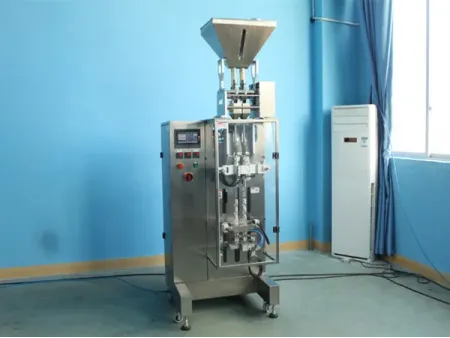

Vertical Stick Pack Packaging Machine
Request a Quote
The stick pack VFFS machine is an automatic stick pack packaging machine, supporting single-lane or double-lane production for powders, liquids, pastes, and granules. The machine integrates automatic metering, bag forming, sealing, cutting, and punching functions. It features servo-driven film pulling, high-sensitivity color mark tracking, and PID temperature control.
Double-Lane VFFS Packaging Machine for Back Seal Stick Packs
- ModelPM-190
- Bag length (mm)70-200
- Bag width (mm)16-90
- Film width (mm)Max.190mm
- Sealing & Cutting LayersSingle-layer sealing and cutting
- Packing Speed20-50 ppm
Applicable Bag Type
Specifications
| Model | ||||
| Bag length (mm) | 70-200 | 70-200 | 70-200 | 70-200 |
| Bag width (mm) | 16-90 | 16-40×2 | 16-90 | 16-40×2 |
| Film width (mm) | Max.190mm | Max.190mm | Max.190mm | Max.190 mm |
| Lanes No. | 1 | 2 | 1 | 2 |
| Sealing & Cutting Layers | Single-layer sealing and cutting | Single-layer sealing and cutting | Double-layer sealing and cutting | Double-layer sealing and cutting |
| Packing Speed | 20-50 ppm | 40-100 ppm | 20-50 ppm | 40-100 ppm |
| Sealing format | Back Seal | |||
Notice: For PM-190 and PM-190H models, when the bag width reaches 80 mm or above, the maximum bag length is limited to approximately 150 mm. As the bag width increases, the allowable bag length decreases accordingly.
Details
Vertical Form Fill Seal Machine for 3-Side Seal Stick Packs
- ModelPM-190H
- Bag length (mm)70-180
- Bag width (mm)16-90
- Film width (mm)Max.190mm
- Sealing & Cutting LayersDouble-layer sealing and cutting
- Packing Speed40-100 ppm
Specifications
| Model | ||
| Bag length (mm) | 70-180 | 70-180 |
| Bag width (mm) | 16-90 | 16-45×2 |
| Film width (mm) | 190 | 190 |
| Speed (bags/min) | 20-50 | 40-100 |
| Lanes No. | 1 | 2 |
| Sealing and cutting | Double-layer sealing and cutting | Double-layer sealing and cutting |
Details
Vertical Form Fill Seal Machine for Irregular Shaped Stick Packs
- ModelPM-190HS
- Sealing TypeBack Seal
- Punch MouldRound Type, Bottle Type, and Other Shapes
- Max. Film Width (mm)190
- Packing Speed (bags/min)20-30
Specifications
| Model | |||
| Sealing Type | Back Seal | Back Seal | 4-Side Seal |
| Punch Mould | Round Type, Bottle Type, and Other Shapes | Round Type, Bottle Type, and Other Shapes | Round Type, Bottle Type, and Other Shapes |
| Max. Film Width (mm) | 190 | 190 | 360 |
| Packing Speed (bags/min) | 20-30 | 40-60 | 20-30 |
Product Sample
Features
- Automatic forming, filling and shaping
- Pouch shape can be made according to customer’s design
- High-sensitivity photoelectric sensors can automatically trace color marks
- PLC with color touchscreen system can set and change the packaging parameters. Daily production output and self-diagnosed errors can be viewed directly from the screen
For cosmetic gel samples, how stable is the performance of the stick pack packaging machine?
For cosmetic gel samples, how stable is the performance of the stick pack packaging machine?
The heat-sealing mechanism is equipped with a temperature control system, ensuring secure and durable seals for gel-based products.
