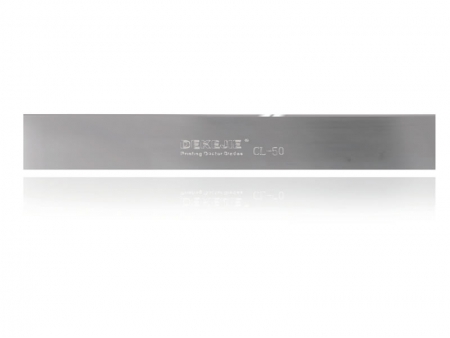

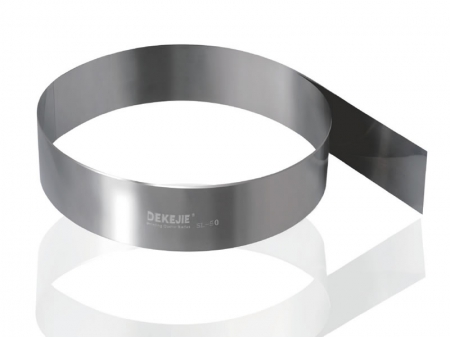

Alloy Carbon Steel Doctor Blade, Item CL-50 Doctor Blade
Request a Quote
- Upgraded based on the CL-40, the CL-50 doctor blade is made using superior quality alloy carbon steel, providing optimal combinations of straightness and flatness.
- The metal doctor blade is suitable for all the gravure and flexo printing applications, with gravure printing speed ≤350m/min, and flexo printing speed ≤400m/min.
- It undergoes special surface finish to improve the endurance limit of the alloy carbon steel, which ensures longer service life.
- The doctor blade features outstanding strength, wear resistance, and corrosion resistance, making it better work with white and black ink.
- It can be applied in the special industries including electronic and lithium battery.
| Size (width) | Max. speed | Thickness (base material) | Package | |
| 10mm | 400m/min | 0.152-0.203mm | 100m/box | |
| 15mm | 400m/min | 0.152-0.203mm | 100m/box | |
| 30mm | 400m/min | 0.152-0.203mm | 100m/box | |
| 40mm | 400m/min | 0.152-0.203mm | 100m/box | |
| 50mm | 400m/min | 0.152-0.203mm | 100m/box | |
| 60mm | 400m/min | 0.152-0.203mm | 100m/box |
