Hamburger Bun Pan & Roll Pan
Request a Quote
Industrial Bakeware with 20 Years of Expertise
Designed for medium to large-scale food factories and automated lines, this hamburger bun pan enables high-volume batch production to meet the demands of bakeries, food processing plants, and foodservice operations.
Request A Quote

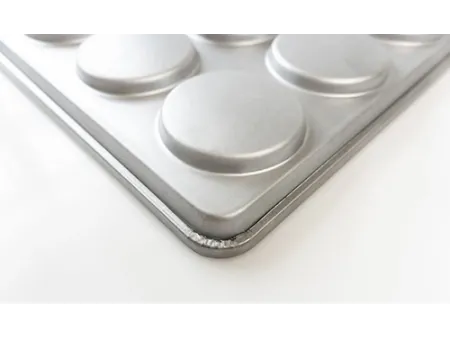

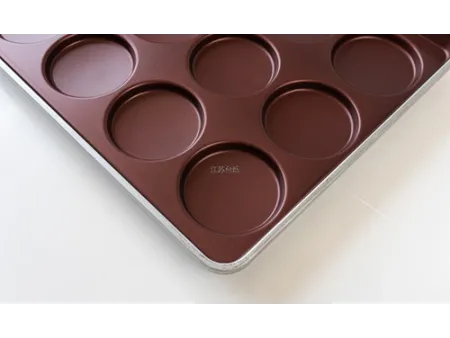

Constructed from aluminized steel through a one-piece deep drawing process, the baking pan features a seamless, easy-clean surface with no corners. The bun molds have a smooth, curved bottom (with optional arc profiles) to maximize contact area, ensuring baked buns are flat, uniformly shaped, and resistant to deformation. High-performance Non-stick coating options are available, including high-performance PFA (approx. 3,000 cycles) and cost-effective Teflon (approx. 1,500 cycles), to ensure excellent food release and superior finished appearance.
Features
Please confirm the following parameters for your custom strap loaf pan set:
- Consistent Quality: Industrial-grade manufacturing ensures a high standardization and uniformity
- High Efficiency: Fully compatible with automated systems, significantly reducing labor requirements
- Tailored Solution: Customizable in size, shape, and material to fit specific production needs.
- Superior Hygiene: The seamless, one-piece construction eliminates gaps where residue can collect, enhancing food safety
- Quality Non-stick Coating: Multiple coating options supported by our in-house coating line to ensure consistent, high-performance Non-stick properties
Product Samples
Specifications
Hamburger Bun Pan
3.5'' Hamburger Bun Pan
- Model:
TS1602 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×40 mm
- No. of Molds: 15
- Materials: Al-steel
- Shape: Flat
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
3.5'' Hamburger Bun Pan
- Model:
TS1645 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×40 mm
- No. of Molds: 15
- Materials: Al-steel
- Shape: Convex
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
4'' Hamburger Bun Pan
- Model:
TS1604 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×40 mm
- No. of Molds: 15
- Materials: Al-steel
- Shape: Convex
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
3.5'' Hamburger Bun Pan
- Model:
TS1621 - Surface Treatment: PTFE
- Dimensions (L×W×H): 738×503×43 mm
- No. of Molds: 24
- Materials: Al-steel
- Shape: Convex
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
3'' Hamburger Bun Pan
- Model:
TS1608 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×35 mm
- No. of Molds: 15
- Materials: Al-steel
- Shape: Flat
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
4'' Hamburger Bun Pan
- Model:
DZ141067 - Surface Treatment: PTFE
- Dimensions (L×W×H): 738×503×43 mm
- No. of Molds: 24
- Materials: Al-steel
- Shape: Convex
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
Roll Bun Pans
Band In Rim
- Model:
TS1606 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×30 mm
- No. of Molds: 15
- Materials: Al-steel
- Shape: Convex
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
TS1610 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×45 mm
- No. of Molds: 6
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
TS12211073 - Surface Treatment: PTFE
- Dimensions (L×W×H): 530×380×30 mm
- No. of Molds: 8
- Materials: Al-steel
- Thichness: δ0.7 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
TS1616 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×45 mm
- No. of Molds: 12
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
TS1614 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×33 mm
- No. of Molds: 10
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
DZ151038 - Surface Treatment: PTFE
- Dimensions (L×W×H): 660×458×37.7 mm
- No. of Molds: 15
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
Croissant Bun Pans
- Model:
TS1618 - Surface Treatment: PTFE
- Dimensions (L×W×H): 600×400×45 mm
- No. of Molds: 16
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
- Model:
TS1122 - Surface Treatment: PTFE
- Dimensions (L×W×H): 530×380×33 mm
- No. of Molds: 12
- Materials: Al-steel
- Thichness: δ0.8 mm
- Size Diagram (Top Dia./Bottom Dia./Height):
Selection Chart
Customized Service
Pan Types
Material
Al-alloy Al-steel
Thickness
0.8 mm 1.0 mm 1.2 mm
- A: Overall length
- B: Overall width
- C: Height
- D: Cup top dia.
- E: Cup bottom dia.
- F: Cup depth
- G1: Cup-to-cup length
- G2: Cup-to-cup width
No coating T-ReXL PTFE Silicon
