LQ-BY

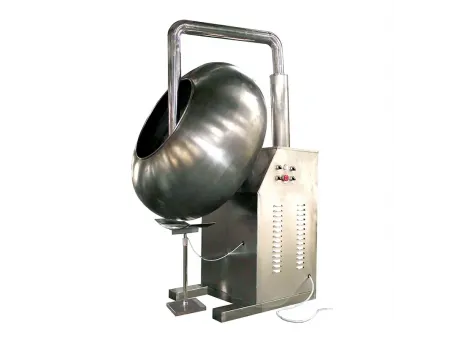

Tablet coating machine for coating bulk tablets with sugar

  • The coating pan is a versatile and efficient machine designed for the sugar coating of bulk tablets, commonly used in the pharmaceutical and food industries. This tablet coating machine is also adept at processing edible nuts, seeds, and beans through rolling and heating. It excels in applications that require high-quality aesthetic and taste enhancements, such as sugar-coated pills and various food products. The Coating Pan ensures that tablets not only look appealing with a bright, polished finish but also provide protective and functional benefits by forming a solid coat that shields the ingredients from oxidation, volatilization, and flavor degradation.

    Specifications
    Model BY600 BY800 BY1000 BY1250
    Pan Diameter 600mm 800mm 1000mm 1250mm
    Capacity 5-15kg 30-50kg 50-70kg 90-150kg
    Speed 32r/min 32r/min 32r/min 30r/min
    Motor Power 0.75kW 1.1kW 1.5kW 2.2kW
    Blower Power 0.12kW 0.2kW 0.2kW 0.55kW
    Total Power 1.87kW 3.3kW 3.7kW 4.75kW
    Voltage 380V/50Hz/3Ph 380V/50Hz/3Ph 380V/50Hz/3Ph 380V/50Hz/3Ph
    Overall Dimensions (L×W×H) 780×600×1360mm 1100×800×1680mm 1150×1000×1680mm 1340×1250×1680mm
    Weight 115kg 270kg 280kg 400kg
    Features
    • The pan's clockwise rotation ensures even and consistent application of compound syrup and slurry mixtures, leading to tablets with a bright and smooth finish.
    • Tablets processed through this machine gain an enhanced visual appeal and improved handling characteristics, thanks to the sugar coat that solidifies into a protective layer.
    • The solid coating layer effectively shields the tablet's core from environmental exposure, preventing flavor loss and controlling dissolution rates within the body.
    • Integrated air systems efficiently remove surface moisture during the coating process, ensuring that each batch meets stringent quality standards for dryness and consistency.
    • Beyond pharmaceuticals, this machine can process a diverse range of products, showcasing its broad adaptability across different industries.
