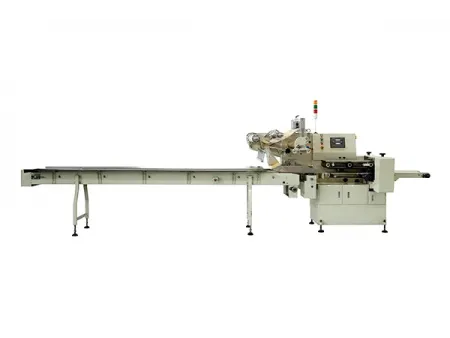

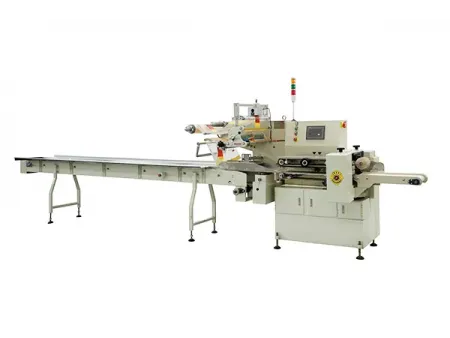

Horizontal Packaging Machine, SF-A
Request a Quote
SF-A
Automatic flow packing machine for packaging small to medium-sized food, pharmaceutical products, and industrial parts with or without trays
SF-A series horizontal flow wrapping machine offers a stable performance with versatile general-purpose applications that enable multiple products to be packaged on a single machine. This automatic multi-purpose flow wrapper is engineered for high-speed continuous operation, which places high demands on the overall strength and rigidity of the machine structure.
Applications
Suitable for packaging various regular solid products or tray-packed products, including:
- Biscuits
- Bread
- Pastry
- Instant noodles
- Pharmaceutical products
- Industrial parts
Features
- Equipped with servo motors for more precise control, achieving stepless speed control and dynamic adjustment during operation.
- Wide full-color touch screen (up to 36×34×13.5 cm) for easier packaging management, supporting packaging data storage and recall functions, automatic adjustment, tracking and cutting point search, alarm prompts, fault indication, cumulative counting, automatic display of bag length and speed, and accurate cutting.
- Photoelectric detection with bidirectional tracking to effectively eliminate packaging errors and reduce material waste.
- New longitudinal hot sealing system enables sealing at lower temperatures, minimizing film scorching during stops and significantly lowering the reject rate.
- Adjustable bag former with configurable long and short pitch settings for convenient product changeover.
Specifications
| Model | |||||||
| Max. film width (mm) | 420 | 420 | 420 | 420 | 560 | 560 | 560 |
| Bag size (mm) L*W*H | L:65-190 W:10-150 H:5-25;25-35 | L:90-400 W:10-150 H:5-25;25-40 | L:100-400 W:10-150 H:10-30;30-55 | L:120-450 W:10-150 H:30-50;40-75 | L:100-400 W:30-200 H:10-30;30-55 | L:120-450 W:30-200 H:30-50;40-75 | L:140-480 W:30-200 H:40-70;60-100 |
| Capacity (bags/min) | 60-250 | 30-200 | 30-180 | 30-150 | 30-150 | 30-120 | 30-100 |
| Overall dimensions (mm) | 5020*1010*1650 (incl. 3 m conveyor) | 5055*1130*1680 (incl. 3 m conveyor) | |||||
| Bag material | Laminated films suitable for hot-sealing:OPP/PP,PT/PE,AL/PE,etc. | ||||||
| Total weight (kg) | 1000 | 1200 | |||||
| Motor power (kW) | 5 | ||||||
Actual technical parameters may vary depending on the packaged product and packaging requirements. Final specifications are subject to mutual confirmation.
