Pan Release Oil Spraying Machine
Request a Quote
Integrated Automated Bakery Production Solutions
From industrial bakery equipment to complete automated bakery lines

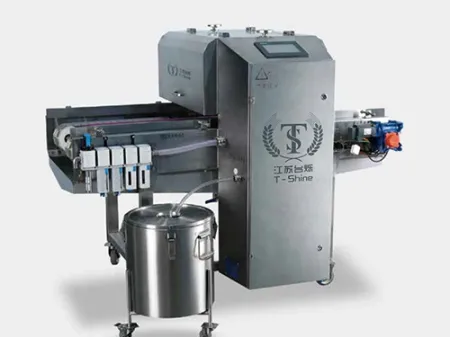

Release Agent Spraying Machine
Request A Quote
Application Scope: The sprayer is optimized for specific batter and dough formulations to guarantee optimal release. It is compatible with a wide range of bakeware, including toast pans, round pans, rectangular pans, flat trays, and various specialty molds.
Features
- Precision Spraying System: Features a Delta servo-driven conveying system for exact positioning, minimizing release oil waste by ensuring spray is directed only where needed
- Controlled Spray Quality: Equipped with an Airtac filter and precision regulator for manual control of atomization and spray pressure, ensuring a consistent, high-quality coating

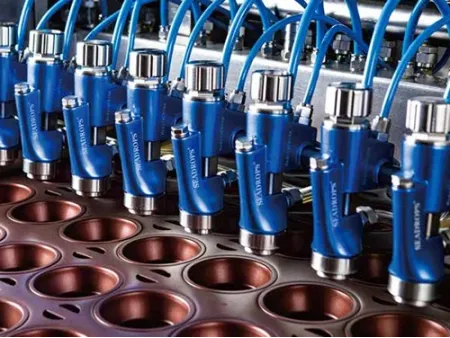

- Professional Spray Gun: Utilizes a dedicated SEADROPS blue spray gun with an effective atomization diameter range of 3–12 cm, delivering reliable and uniform coverage
- Optimized for Cost Efficiency: Designed for use with medium- to low-viscosity release oils, maximizing material utilization and providing precise cost control
- Flexible Operation & Memory: Configured with a single row spray guns, manually adjustable to target specific mold cavities. The Siemens control system allows storage of up to 4 different mold parameter sets for rapid product changeovers
Installation Requirements:
- Independent G1/4 internal-thread air inlet (provided by the factory)
- Inner diameter of air supply pipe ≥ 19 mm
- Operating air pressure: 6 bar
- Power supply: 220V / 380V
Specifications
| Technical Item | Value |
|---|---|
| Power Supply Voltage | AC 220 V |
| Air Source Pressure | ≥6 bar |
| Conveying Length | 1600 mm (customizable) |
| Conveying Width | 720 mm (customizable) |
| Atomization Pressure | Manual control 0~6bar |
| Opening Pressure | Manual control 0~6bar |
| Conveying System | 0.4 kW |
Release Agent Spraying Machine
Request A Quote
Application Scope: The sprayer is optimized for specific batter and dough formulations to guarantee optimal release. It is compatible with a wide range of bakeware, including toast pans, round pans, rectangular pans, flat trays, and various specialty molds.
Features
- High-Precision Spraying: Equipped with Siemens dual-system servo conveying with accurate positioning, allowing one-click switching with 4–8 mold parameter sets
- Automatic Pressure Control: FESTO precision air filter and regulator enabling automatic atomization and spray-pressure control
- High-Speed Performance: A spraying speed of 3–4 seconds per pan for an 800×800 mm pan
- Professional Spray Gun: SEADROPS stainless steel spray gun with multi-stage airflow and atomization diameter 3–12 cm, suitable for high-viscosity oils
- Spray-Gun Design: Available in single-row or double-row configurations to eliminate repeated manual adjustments
- Optional:
- Oil mist collector: Ensures a pollution-free environment in the workshop
- Software: Automatically tracks daily production data and release agent usage, assisting operators in cost control
- Oil supply devices:
1. Diaphragm pump: easy to operate.
2. Stainless steel gear pump: long service life, high stability and low maintenance cost.
Installation Requirements:
- Independent G1/4 internal-thread air inlet (provided by the factory)
- Inner diameter of air supply pipe ≥ 19 mm
- Operating air pressure: 6 bar
- Power supply: 220V / 380V
Specifications
| Technical Item | Value |
|---|---|
| Power Supply Voltage | AC 220 V |
| Air Source Pressure | ≥6 bar |
| Conveying Length | 2300 mm (customizable) |
| Conveying Width | 920 mm (customizable) |
| Atomization Pressure | Manual control 0~6bar |
| Opening Pressure | Manual control 0~6bar |
| Conveying System | 0.75 kW |
