PCBN Cutting Tools (Tool Bits for Turning), DNGA

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-dnga-2-2-6.html

Technical Specifications

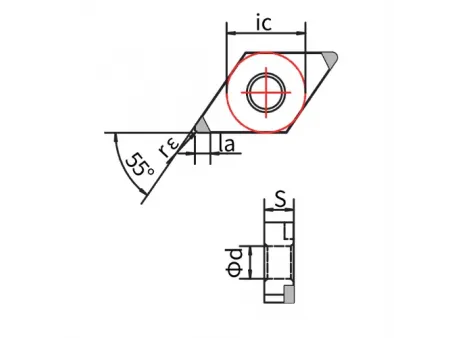

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
DNGA150404	DNGA431	2N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	2N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	2N	Chip breaker	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	2N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	2N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	2N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150408	DNGA432	2N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150408	DNGA432	2N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150408	DNGA432	2N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150404	DNGA431	4N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	4N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	4N	Chip breaker	12.7	5.16	4.76	0.4	2.2	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	4N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	4N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150404	DNGA431	4N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
DNGA150418	DNGA432						0.8
DNGA150412	DNGA433						1.2
DNGA150408	DNGA432	4N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150408	DNGA432	4N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150408	DNGA432	4N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
DNGA150412	DNGA433						1.2
DNGA150416	DNGA434						1.6
DNGA150604	DNGA441	2N	Standard	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	2N	Wiper	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	2N	Chip breaker	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	2N	Standard	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	2N	Wiper	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	2N	Chip breaker	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150608	DNGA442	2N	Standard	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
DNGA150608	DNGA442	2N	Wiper	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
DNGA150608	DNGA442	2N	Chip breaker	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
DNGA150604	DNGA441	4N	Standard	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	4N	Wiper	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	4N	Chip breaker	12.7	5.16	6.35	0.4	2.2	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	4N	Standard	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	4N	Wiper	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150604	DNGA441	4N	Chip breaker	12.7	5.16	6.35	0.4	3	●	●	●
DNGA150618	DNGA442						0.8
DNGA150612	DNGA443						1.2
DNGA150608	DNGA442	4N	Standard	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
DNGA150608	DNGA442	4N	Wiper	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
DNGA150608	DNGA442	4N	Chip breaker	12.7	5.16	6.35	0.8	4	●	●	●
DNGA150612	DNGA443						1.2
DNGA150616	DNGA444						1.6
