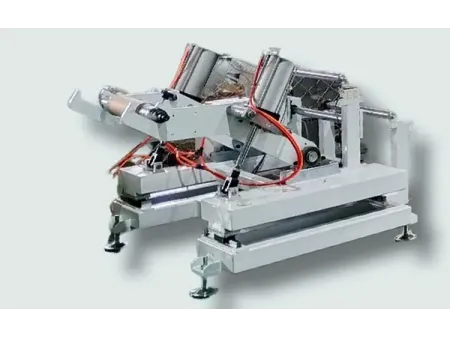

Pre-Punched Layflat Hose Making Machine
Layflat Hose Machine
Designed for producing high-pressure layflat hoses with pre-punched outlet holes
The pre-punched layflat hose making machine is a newly developed water-saving irrigation solution engineered for integrated manufacturing of pre-punched composite layflat hoses. The system is among the earliest in the industry to be developed and commercialized as a complete production line, offering a standardized and scalable solution for irrigation mainline hose manufacturing.
The pre-punched composite layflat hose product is manufactured from PE with a five-layer composite woven structure, to enhance durability, UV resistance, abrasion resistance, and algae resistance. Pre-installed outlet connectors are welded during production, resulting in hoses with high pressure resistance, large diameters, and no need for secondary punching. The hoses are suitable for both high- and low-pressure irrigation environments.
Pre-punched outlet hole layflat hoses are used as mainline pipelines for drip irrigation and sprinkler irrigation in agricultural fields, including large-scale farmland, orchards, and vegetable or flower cultivation. They are also suitable for landscape irrigation applications such as urban parks and verges.
- Fabric accumulator
- Pre-punched outlet component sorting unit
- Ultrasonic punching and welding unit
- Woven fabric storage speed control frame
- Thermal forming unit for hose
- Haul-off and coiling unit
- Production line speed15m/min
- Diameter2.5/3/3.5/4/4.5inch; 63/75/90/100/110mm
- Outlet hole spacing40-80cm; 81-120cm; 121-200cm
- No manual punching is required, and the outlet spacing can be freely configured to meet different irrigation layouts.
- The hose product is highly durable and suitable for repeated use across multiple irrigation seasons.
- The hose offers strong pressure resistance, enabling irrigation coverage over large field areas.
- A nut-type connector design allows fast connection, improving installation efficiency.
- The layflat hose structure allows easy coiling and storage, while its lightweight and flexible design simplifies installation, deployment, and recovery.
- The hose provides reliable sealing performance, ensuring stable operation without leakage or jetting during irrigation.
- Exclusive raw material solution
Utilizes five-layer composite woven fabric with enhanced resistance to UV exposure, abrasion, and algae growth. - In-house developed equipment
Manufactured in a dedicated production facility, ensuring reliable quality control and a high level of customization capability. - Proven technology maturity
One of the earliest complete production line solutions for pre-punched composite layflat hose manufacturing, validated through continuous development and application. - Market-validated performance
The production line quickly received domestic and international orders after release, with repeat large-volume purchases confirming its commercial reliability.
