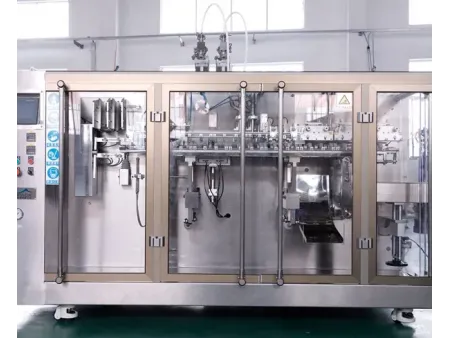

Premade Pouch Packaging Machine, 2-Nozzle Filling
These premade pouch packaging machines are designed for small-volume products, typically in the 10–200 ml range. With two filling nozzles working in parallel, two pouches are processed in each cycle instead of just one, which increases the output, and in real production the efficiency can be around 80% higher than with single-nozzle packaging machines, allowing higher volumes to be handled within the same production time. Preformed pouches are used for packaging, and the process covers pouch pick-up, opening, filling, and sealing in a synchronized cycle. These 2-nozzle pouch packaging machines are widely used to package cosmetics, food, pharmaceuticals, health supplements, pet food, etc.
Applications
- Dual pouch loading
- Dual pouch pick-up
- Dual pouch opening
- Dual air blowing (pouch opening air assist)
- Dual filling
- Dual pouch expanding
- Heat sealing
- Cooling sealing
- Finished pouch discharge
- Finished pouch conveying
- These premade pouch packaging machines can package various pouch styles in a stable way, including three-side seal, four-side seal, stand-up pouches, and special-shaped pouches.
- Different filling systems can be selected depending on the product, so the same platform can be used for powders, granules, liquids, and viscous materials without changing the basic structure of the packaging machine.
- All main parts in contact with the product are made of 304 stainless steel, together with anodized aluminum components and food-grade plastics, meeting GMP requirements for food and pharmaceutical applications.
- The pouch packaging machine is equipped with PLC control to coordinate the motions of pouch pick-up, opening, filling, and sealing, so each step runs in sync and the whole process stays smooth and stable during continuous production.
- A pouch opening detection function is included, so filling only takes place when the pouch is correctly opened, reducing product waste. Sealing is also blocked when no product is filled, which helps avoid unnecessary use of packaging material.
- The two-nozzle configuration allows two pouches to be processed in each cycle, bringing an efficiency increase of more than 80% compared with single-nozzle equipment. The combined theoretical output can reach up to 100 pouches per minute.
- According to production needs, the pouch packaging machine can be equipped with additional systems such as coding machines, checkweighers, cartoners, case packers, labeling machines, and palletizers, so the line can be expanded into a more automated setup, with less manual handling.
| Model | 180DG | |
| Packaging parameters | Min. pouch size (W × H) | 60×130mm |
| Max. pouch size (W × H) | 90×250mm | |
| Max. filling volume | 200ml | |
| Packing speed (pouches/min) | ≤100 | |
| Equipment specifications | Machine dimensions (L × W × H) | 2400mm×1100mm×1400mm |
| Total machine weight | 900kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 560L/min | |
| Main motor power | 3.5Kw | |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern

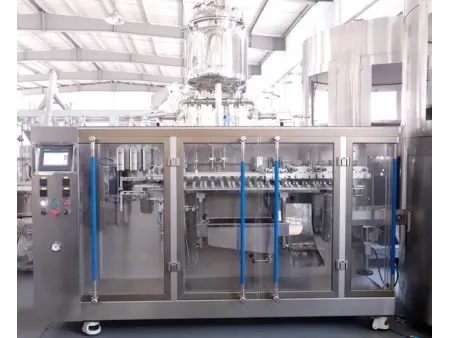

Pouch pick-up & filling section
Pouch grippers, HMI control panel, liquid product tank, conveyor system
