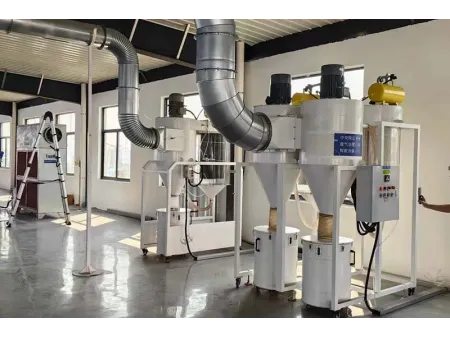

CLK Cyclone Environmental Protection Equipment
Description
Designed to separate solid particulate matter from air or liquid, the CLK type cyclone dust collector is composed of barrel, air inlet pipe, and outlet pipe. As an environmentally friendly machine, it is mostly used in the construction field.
Features
1. Compact structure, small volume, high efficiency, reliable performance, convenient maintenance
2. Suitable for collecting dry non-fibrous particulate dust
| Model | Processing capacity (m3/h) | Inlet temperature | Wind velocity at inlet | Resistance (Pa) | Weight (kg) |
| Φ800 | 7000-10000 | <350℃ | 10-25m/s | <1000 | 1100 |
| Φ1000 | 9000-12000 | <350℃ | 10-25m/s | <1000 | 1560 |
| Φ1200 | 10000-15000 | <350℃ | 10-25m/s | <1000 | 2100 |
| Φ1400 | 12000-18000 | <350℃ | 10-25m/s | <1000 | 2800 |
| Φ1500 | 15000-20000 | <350℃ | 10-25m/s | <1000 | 3200 |
| Φ1600 | 16000-22000 | <350℃ | 10-25m/s | <1000 | 3500 |
| Φ1800 | 18000-25000 | <350℃ | 10-25m/s | <1000 | 3900 |
